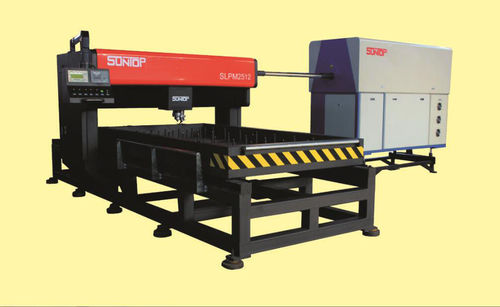

CO2 laser cutting machine ST-SLPM2512-1500D
for steelfor stainless steelfor wood

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for steel, for stainless steel, for wood
Product handled
die board
Control type
CNC
Other characteristics
high-power
X travel

1,250 mm
(49 in)

Y travel

2,500 mm
(98 in)

Cutting speed

Min.: 160 mm/min
(0.105 in/s)

Max.: 170 mm/min
(0.112 in/s)

Laser power

1,500 W

Description

1, This machine main function and features This machine adopt Suntop laser self-develope high power CO2 laser Generator with high stability and high cost performance; The machine is utilized imported PA laser dedicated CNC control system, which is combined from laser and machine control system. The control system is developed, the machine is configured with a travelling table and stationary gantry design, to provide a rigid and stable platform as well as a small floor space. The machine is equipped with customized programming software NEWCAM PACK6.0 from Taiwan, this versatile product combines the drawing, programming, slit width and text setting, multiple file formats supporting, and machining process customization. Machine On the Windows® operation system with the excellent developing capacity of HMI, CNC and PLC, following the most advanced process. The control system is supplied laser die-board process database, machine operation function, laser operation function, remote diagnose function and so on.
