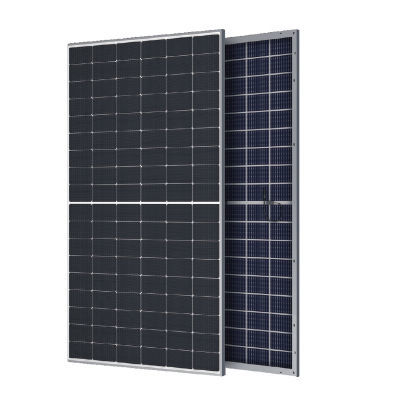

Monocrystalline silicon solar panel VCS-108H series
ISOIEChigh-performance

Add to favorites

Compare this product

Go to the SUZHOU VEICHI Electric Co., Ltd. website for more information

Characteristics

Material

monocrystalline silicon

Certifications

IEC, ISO

Other characteristics

high-performance, IP68

Peak power (Wp)

Max.: 430 W

Min.: 410 W

Open-circuit voltage

Max.: 38.5 V

Min.: 37.7 V

Short circuit current

Max.: 14.2 A

Min.: 13.9 A

Max power voltage

Max.: 31.9 V

Min.: 31.1 V

Max power current

Max.: 13.5 A

Min.: 13.2 A

Module efficiency

Max.: 22.02 %

Min.: 21 %

Lenght

1,722 mm
(68 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

22 kg
(48.5 lb)

Description

Key Features: 1. Maximum Power Output: 430W. 2. Maximum Module Efficiency: 22%. 3. Power Output Guarantee: 0~+5W. 4. N-Type. Product Overview: These monocrystalline solar panels are known for their high energy conversion efficiency, VCS-108H monocrystalline solar panel typically ranging from 410 to 430 watts. This means they can generate a substantial amount of electricity from sunlight, making them suitable for various applications. Deliver Reliable Performance Over Time: 1. Manufacturer of crystalline silicon photovoltaic modules. 2. Fully automatic facility and world-class technology. 3. Rigorous quality control to meet the highest standard: ISO9001:2015, ISO14001: 2015 and OHSAS: 18001 2007. 4. Tested for harsh environments (salt mist, ammonia corrosion and sand blowing test: IEC 61701, IEC 62716, DIN EN 60068-2- 68). 5. Long term reliability tests. 6. 2×100% EL inspection ensuring defect-free modules. Prouct Applications: Residential rooftop installations, commercial solar projects, and utility-scale solar farms.
