Solar pump DC/AC inverter SI23-C series

off-gridhigh-powermodified sine wave

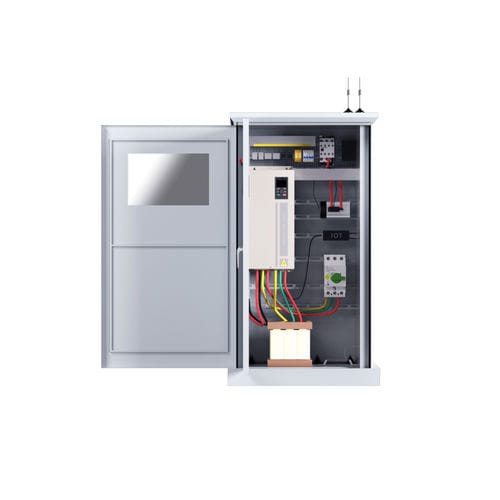

SI23 Series Solar Pump System Cabinet 1. Key Features True hybrid power input. Automatic unattended operation. Inteligent agricultural irrigation system. Adapt to various types of solar pumps. Exclusive solutions for water pump applications. 2. Overview SI23 series solar pump system cabinet is a specially designed cabinet for housing VEICHI SI23 series solar pump inverter and related components. It integrates multiple functions and components to ensure the efficient, stable, and safe operation of solar pump systems. Suitable for outdoor use, it features waterproof and dustproof capabilities. 3. Applications Agricultural irrigation, desert governance, grassland livestock, urban springs, household water. 4. Basic Parameters 1）Voltage Class D1: 155V DC, suitable for the 110V AC pumps 3PH D3: 311V DC, suitable for the 220V AC pumps 3PH D5: 540V DC, suitable for the 380V AC pumps 3PH SS2: 311V DC, suitable for the 220V AC pumps 1PH 2）Related Power 0.75kW-11kW 3）Components Standard： a. Solar Pump Inverter b. Cabinet c. MCBs (Miniature Circuit Breakers) d. Surge Protective Device e. Cooling Fan f. External Keyboard g. Anti-Reflection Diode h. Knobs and Other Components Optional: a. PLC b. Touchscreen c. IOT expansion card d. Reactor/Sine filter e. Transformer moudle
