Aseptic separator PH12

vibratingparticlefor the pharmaceutical industry

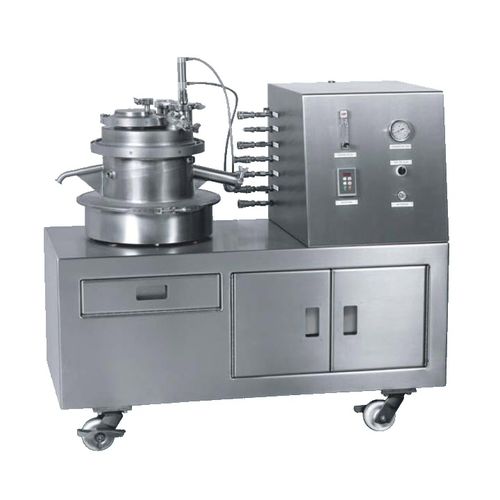

PH12 PharmASep Pharmaceutical Aseptic Separator The PharmASep 300mm (PH12) lab Filter/Dryer allows batch processing up to 1 kg in size. The no-gap design and sealed environment allow for extremely high-yield product recovery and safe handling of highly potent pharmaceuticals. The unique, patented Vibro-Dry technology developed by SWECO allows vacuum drying to occur within the PharmASep while the product is gently tumbled on the screen surface, accelerating drying and reducing formation of agglomerates. SWECO PharmASep™ Filter/Dryers were designed for the aseptic batch filtration and washing of pharmaceutical solids and for their further dewatering and drying. All processes are completed within the sealed chamber without any need for intermediate transfer, handling, or exposure to the external environment. The PharmASep™ uses gentle, patented Vibro-Energy motion to promote fluid separation at low differential pressures. The motion is then combined with nitrogen purge to fluidize the bed of solids for gentle, efficient drying. No mechanical stirring devices are required. Solids are generally discharged as a flow-able powder with consistent dryness and free of lumps. Additional features are as follows: *Chamber design is crevice-free and fully-drainable *Interior Ra < 0.3 microns and electropolished *Exterior Ra < 0.6 microns and passivated
