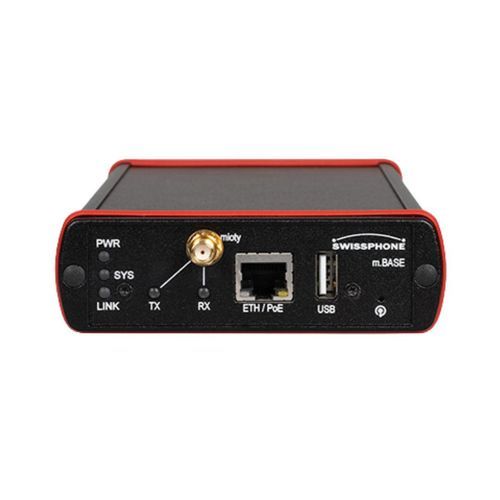

Mobile network base station Mioty® m.BASE

for wireless networksoutdoorhigh-power

Overview
Swissphone’s mioty® base station m.BASE is designed for demanding IoT applications that require reliable bidirectional communication with distributed end-points and sensors.

What Makes the M.Base Different?

• High-performance RF front end supporting narrow-band profiles
• Optimized for license-free SRD 868 MHz band in Europe
• Up to +25 dBm transmit power and -137 dBm receiver sensitivity
• Redundant power architecture: Power over Ethernet (PoE) plus two DC inputs
• Redundant network connectivity with Ethernet; optional mobile (LTE)
• Compact, versatile housings: wall, DIN-rail, 19" rack-mount; outdoor kit available
• Mioty® alliance compliant backend interfaces (BSSCI)

Product features
The compact form factor and high-performance RF frontend provide deployment flexibility across indoor and outdoor installations. The multi-redundant power and network architecture supports critical and continuous operation. Multiple hardware variants are available to match installation requirements.

Key technical highlights

• Bidirectional RF front end for narrow-band profiles (EU0, EU1)
• Transmit power up to +25 dBm and receiver sensitivity down to -137 dBm
• Optimized for SRD / ISM 868 MHz (license-free) frequency band
• Multi-redundant power supply: PoE plus two DC inputs
• Redundant network connectivity: Ethernet and optional LTE
• Backend connection mioty alliance compliant (BSSCI)
• Housings: wall, DIN-rail, 19" rack-mount and outdoor kit
• Compact boxed dimensions: 110 x 35 x 190 mm (w x h x d)
• Operating temperature range: -20 °C to +55 °C

Areas of application

• Public safety
• Smart city deployments
• Industrial IoT

Relevant industries

• Healthcare
• Emergency / rescue services
• Industry

Technical specifications

• Model family / name: Mioty® m.BASE
• Radio technology: mioty® LPWAN (telegram-splitting approach for interference resilience)
• Supported narrow-band profiles: EU0, EU1
• Frequency band: SRD / ISM 868 MHz (Europe)
• Maximum TX power: up to +25 dBm
• Receiver sensitivity: down to -137 dBm
• Power supply: PoE and two DC inputs (redundant power architecture)
• Network connectivity: Ethernet (redundant) and optional mobile radio (LTE)
• Backend interface: mioty alliance compliant (BSSCI)
• Housings / mounting options: wall, DIN-rail, 19" rack-mount; outdoor kit available
• Dimensions (boxed): 110 x 35 x 190 mm (w x h x d)
• Operating temperature: -20 °C to +55 °C
• Hardware variants: multiple variants available to meet specific requirements
