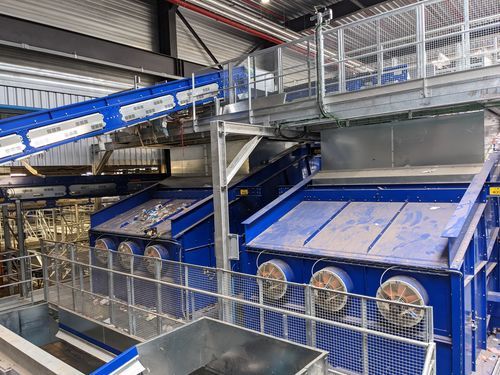

Waste separator BAS

ballisticfor the recycling industryprocess

Description
The BAS model features customized screening with adaptable mesh layouts and interchangeable screen plates, allowing you to calibrate filtration according to the exact characteristics of your waste streams. Equipped with an advanced air-assist system featuring 3 variable-speed aluminum fans, it guarantees unmatched multi-fraction sorting purity, even for lightweight plastic films.

Industrial Advantages

• Integrated Handling: 2 lifting gantries built directly into the frame to secure and facilitate maintenance operations.
• Smart Controls: Independent electrical cabinet coupled with an intuitive touchscreen for real-time parameter tracking.
• Premium Drive System: High-performance powertrain driven by 2 gearmotors.
• Heavy-Duty Kinematics: Industrial heavy-duty crankshaft weighing 450 kg and ensuring maximum operational uptime.

Options & Modularity

• Paddle Configuration: Available in 4 or 8 paddles depending on your throughput requirements and sorting plant layout.
• Variable Incline: Motorized adjustment of the tilt angle from 12° to 18° to adapt instantly to changes in the processed material.
• Pneumatic Platforms: Maximum access convenience to the internal components of the ballistic separator for fast and safe maintenance.
• Anti-Corrosion Finishes: Choice of cold-galvanized steel, hot-dip galvanized steel, painted steel, or stainless steel depending on the corrosiveness of the treated products.

Applications

• Municipal Solid Waste (MSW / C&I): Automated sorting of commingled and selective waste collection.
• Plastics Recycling: Efficient separation of flexible films (2D) and hollow bodies/bottles (3D).
• Paper & Cardboard Recovery: Purification and sorting of paper fiber streams.
• RDF Production: Sizing and calibration of Refuse-Derived Fuel streams.
• Construction & Demolition Waste (C&D): Separation of lightweight materials from small-sized debris.
• Biowaste Treatment: Elimination of contraries and impurities prior to composting.

Information required for your quote request
To obtain a personalised quote, click on “Request a quote” and specify:

• Type of material to be conveyed
• Target flow rate (t/h or m³/h)
• Particle size of the material
• Installation and in-line integration requirements
