oleodynamic press / test / tryout / die-spotting
HMG-200ES

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

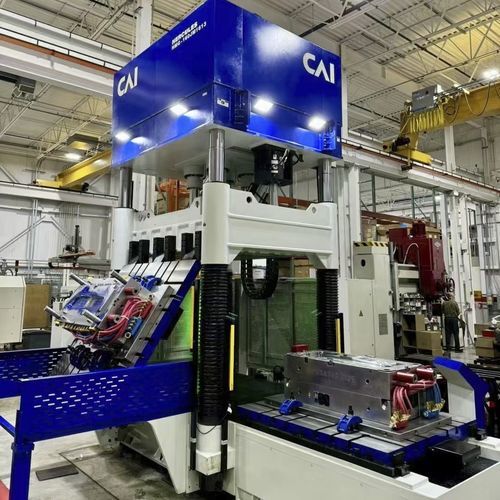

oleodynamic press oleodynamic press - HMG-200ES
{{requestButtons}}

Characteristics

  • Operation:

    oleodynamic

  • Function:

    test, tryout, die-spotting

  • Other characteristics:

    custom, with movable table, single-sided, extra-high-pressure, with pressure regulator, repair, with lifting table, for industrial applications, for the automotive industry, for plastics, 4-column, for automotive parts, for tools, automatic

  • Opening:

    Max.: 1,900 mm (75 in)

    Min.: 200 mm (8 in)

  • Force:

    Max.: 2,000 kN

    Min.: 0 kN

Description

Die Spotting press is the most sure & safe way to check the butting of core & cavity of Die & Mould.
It allows you to conveniently match all the parts of the mould in more comfortable position. Check and finish the die at one place in more ergonomic position.
High standard of configuration ensures the excellent performance of press, and all the main components for mechanical processing are manufactured by imported machining center, to ensure machining precision of press elements. The shift-out rail of lower mold plate adopts wear resistant rail with intensified handle and large-scale dust-proof device; Hydraulic system adopts optimal combination of imported high performance hydraulic elements, and oil pump hydraulic valve is the world first-class brand.
The advancements and advantages
•CE Marked product with Certificate of Conformity.
•Using high tensile rod to provide higher accuracy and to make more convenient for platen parallelism adjustment when the mold is closed with high pressure.
•Achieving digital PLC controlled by computer, all of the parameters can be displayed by the Siemens touch screen and free to set up. S7-1200 Version with Encoders as a standard component for ESA Series.
•Four Encoders with optional function to measure parallelism real time and protect mold during the clamping period.
•Sufficient Safety Devices and Pneumatic-mechanical locks for upper table.
•Using four mold clamping cylinders to make stress even when the mold is closed with high pressure.
•Using quick cylinder device, it speeds up null stroke without mold closing, and it makes lower energy consumption and more energy conservation.
