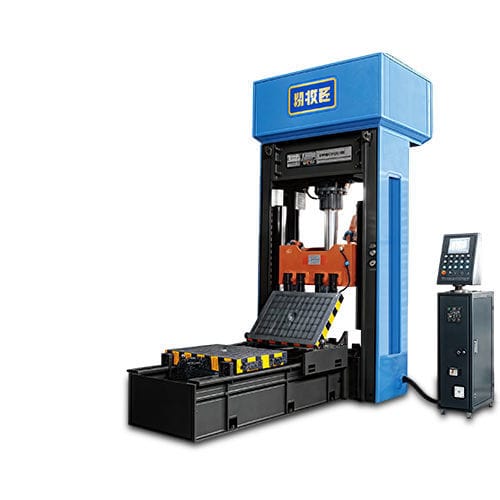

Oleodynamic press HMG-500A

die-spottingfor the automotive industryfor industrial applications

Die Spotting press is the most sure & safe way to check the butting of core & cavity of Die & Mould. It allows you to conveniently match all the parts of the mould in more comfortable position. Check and finish the die at one place in more ergonomic position. High standard of configuration ensures the excellent performance of press, and all the main components for mechanical processing are manufactured by imported machining center, to ensure machining precision of press elements.

1.60+ Years Traditional Style
2.Economical & stable
3.Low pressure mold protection function
4.Considerable clamping Force
5.Outstanding precision
6.Good ergonomics

Why Die Spotting press

1.It allows you to conveniently match all the parts of the mould in more comfortable position. Check and finish the die at one place in more ergonomic position.
2.No more dangerous ways (such as cranes and forklift trucks) to handle the molds.
3.No more spotting on injection molding machines, which are costly and difficult to access.
4.Optimal accessibility and ergonomics by means of swiveling and tilting plates.
5.Low operating and maintenance costs.
6.High Flexibility.
7.Considerable reduction of correction grinding through reproducibility.
8.Trials of hydraulic slides, auxiliary cylinders and ejectors can also be done in single operation.
