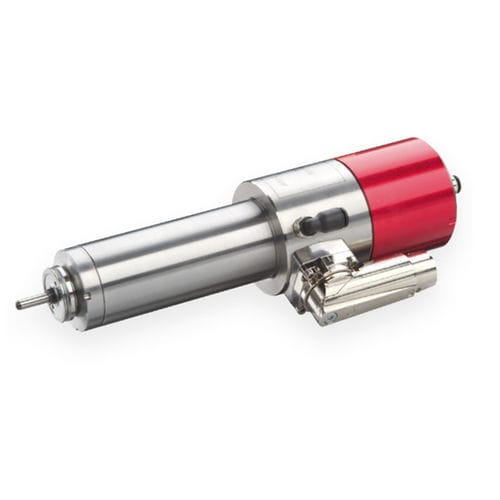

Milling motor spindle 4033 DC

clampingengravinggrinding

Technical data Part No. 2000 8200 Applications Drilling, Milling, Grinding, Engraving Clamping diameter 33 mm Motor system Brushless DC motor (BLDC) Speed range 5,000 - 100,000 rpm Frequency 83 – 1,666 Hz Voltage 49 V Current max. 24 A / 30 s Torque max. 14.4 Ncm Output power S1: 700 W, max. 870 W Motor protection KTY Weight 1.0 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1 µm Chuck clamping range max. Ø 4.0 mm Chuck type C3 Tool change Pneumatic 5 – 6 bar (hose Ø 4 mm) Cooling system Cooling via clamping bracket Protection category IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2617) Protected against dirt and cooling lubricant Sealing air 27 l/min@STP (hose outside Ø 4 mm) Housing material Stainless steel Cable / plug type 915 Inverter recommendation e@syDrive® 4625* e@syDrive® 4626 e@syDrive® TV 4506* Highlights Taper cleaning at 6 bar
