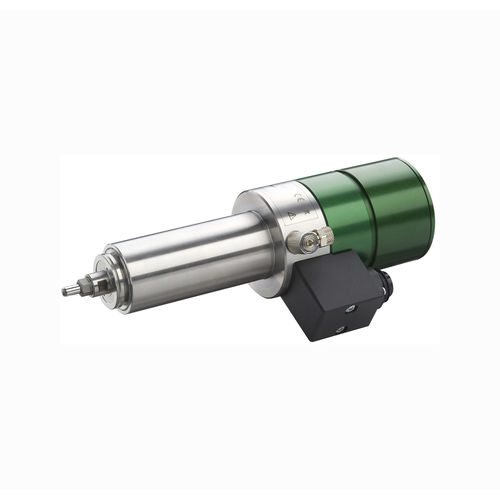

Clamping motor spindle 4041 HY-ESD

for PCB routingAC motor

Technical data Part No. 2001 2520 Applications PCB routing Clamping diameter 45 mm Motor system 3 Phase asynchronous motor Speed range 5,000 - 50,000 rpm Frequency 83 - 833 Hz Voltage 48 V Current max. 13 A Torque max. 27 Ncm Output power max. 500 W Motor protection PTC-100°C Weight 3.5 kg Bearing system 3 x Hybrid, lifetime lubrication Run-out (taper) ≤ 1.5 µm Chuck clamping range Ø 1.0 – 6.35 mm (incl. 1/8" + 1/4") Chuck type C4 Tool change Pneumatic 5 – 6 bar Cooling system Cooling via clamping bracket Protection category IP 54 Protected against dirt and cooling lubricant Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) Housing material Stainless steel Cable / plug type EM-C16 Inverter recommendation e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4506 Highlights Electrostatic discharge
