Flat bottom silo

galvanized steel

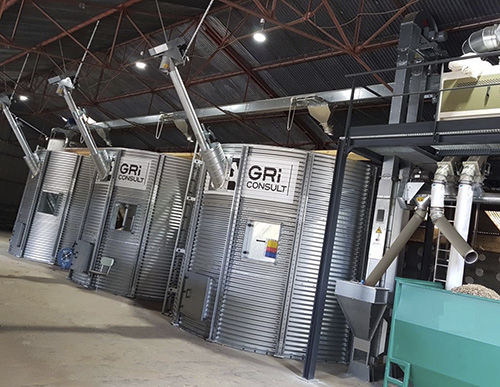

Indoor silos are a cost effective solution for indoor storage. They are now available ranging from 3m to 12.23m diameter, with the following models SBI: 3.00, 3.50, 4.60, 5.35, 6.10, 6.87, 7.60, 8.40, 9.20, 9.93, 10.7, 11.45 y 12.23. Maximum Height of the line is limited to 10 rings of body sheets, or 11,45m. RAW MATERIAL: The company manufactures in galvanized corrugated steel, with a 600 gr/m² coating, ensuring a double service life more than other suppliers do. WIDE RANGE OF PRODUCTS: Diameters: 3.00, 3.50, 4.60, 5.35, 6.10, 6.87, 7.60, 8.40, 9.20, 9.93, 10.7, 11.45 and 12.23. Maximum Height of the line is limited to 10 rings of body sheets, or 11,45m. CALCULATION OF THE STRUCTURE: Silo calculation is made according to different norm as ANSI – ASAE EP 433 2033, EUROCODE EN-1991-4, or any different required norm. SILO COMPONENTS: Cylindrical body Made up of bodysheets and stiffeners, manufactured in structural steel S 350 GD Z600 hot dip galvanized. Access door Placed in the second ring to access to the interior of the silo. We provide two different sizes: 600x700mm, and 530x700mm. New door lock system with 3 pressure screws. Foam to improve silo tightness. Easy to assemble. Pre-installed door to avoiding extra works during erection. Bolting Quality 8.8 and 10.9. Nuts provided are quality 8, and neoprene EPDM washers guarantee sealing. We supply preassembled bolting and hot dip galvanized with (70 – 85 microns), ensuring higher service life more than other suppliers do.
