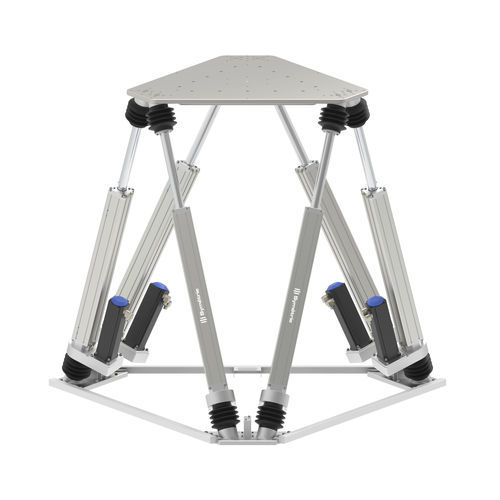

Motion hexapod MISTRALbrushlessindustrialfor medical applications
Add to favorites
Compare this product
Characteristics
- Type
- motion
- Motor type
- brushless
- Applications
- for testing, for laboratory applications, for medical applications, industrial, for maritime applications, for robotics, for the automotive industry
- Other characteristics
- custom, precision, API, for heavy loads, high-speed, with controller, with parallel kinematics
- Payload capacity
Max.: 1,000 kg
(2,204.6 lb)Min.: 0 kg
(0 lb)- Linear stroke X
Max.: 460 mm
(18 in)Min.: -460 mm
(-18 in)- Linear stroke Y
Max.: 460 mm
(18.11 in)Min.: -460 mm
(-18.11 in)- Linear stroke Z
Max.: 400 mm
(15.75 in)Min.: -400 mm
(-15.75 in)- Angular stroke X
Max.: 30 °
Min.: -30 °
- Angular stroke Y
Max.: 30 °
Min.: -30 °
- Angular stroke Z
Max.: 40 °
Min.: -40 °
- Height
1,500 mm
(59.1 in)- Speed
1,200 mm/s
Description
FOR MOTION GENERATION SIMULATION
Mistral hexapod is a dynamic system providing 6 degrees of freedom (6 DOF).
With efficient mechanical components, Mistral hexapod allows motion generation for up to 1 ton loads with important linear and angular travel ranges (up to ±460 mm in linear travel and ±40° in angular travel).
This hexapod was first designed to realize a heave motion to test boat hulls.
Mistral hexapod can also reproduce the trajectories of land, naval or air vehicles and thus allows lab testing of sensors that will then be put onboard.
APPLICATIONS
► Dynamic tests
► Motion generator
► Swell simulation
► SATCOM antennas testing
► Electro-optics systems testing
► Stiffness material control
OPTIONS
► Outdoor environment
► Wave basin environment
► ATEX compatibility
► C axis: Rz 360°
► API
VIDEO
