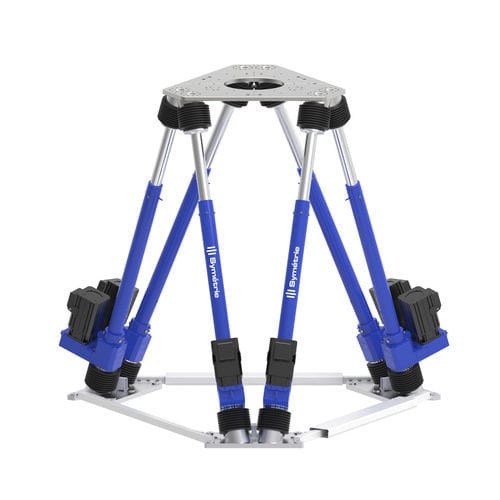

Motion hexapod SIROCCObrushlessindustrialfor medical applications
Add to favorites
Compare this product
Characteristics
- Type
- motion
- Motor type
- brushless
- Applications
- for testing, for geometric alignments, for laboratory applications, for medical applications, industrial, for maritime applications, for robotics, for the automotive industry
- Other characteristics
- custom, precision, API, for heavy loads, high-speed, with controller, with parallel kinematics
- Payload capacity
Min.: 0 kg
(0 lb)Max.: 1,000 kg
(2,204.6 lb)- Linear stroke X
Min.: -500 mm
(-20 in)Max.: 500 mm
(20 in)- Linear stroke Y
Min.: -500 mm
(-19.69 in)Max.: 500 mm
(19.69 in)- Linear stroke Z
Min.: -500 mm
(-19.69 in)Max.: 500 mm
(19.69 in)- Angular stroke X
Min.: -40 °
Max.: 40 °
- Angular stroke Y
Min.: -40 °
Max.: 40 °
- Angular stroke Z
Min.: -40 °
Max.: 40 °
- Height
1,500 mm
(59.1 in)- Speed
2,000 mm/s
Description
SIROCCO can reproduce movements with a load of up to 2 tons.
As a reminder, a hexapod is a platform with a parallel structure that can reproduce movements in 6 degrees of freedom for testing and calibrating systems, or for simulating dynamic situations.
The hexapod can be used to study the movement of liquids, set models in motion or simulate a vehicle.
This solution can integrate a 6-degree-of-freedom measurement system, dissociated from the motion generator, to control the position of the moving plate in real time.
