Beamforming camera TABSHOOTER ®-TBS72-LD

acousticindustrialdetection

Presentation

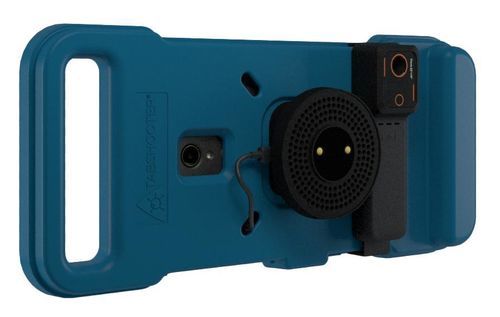

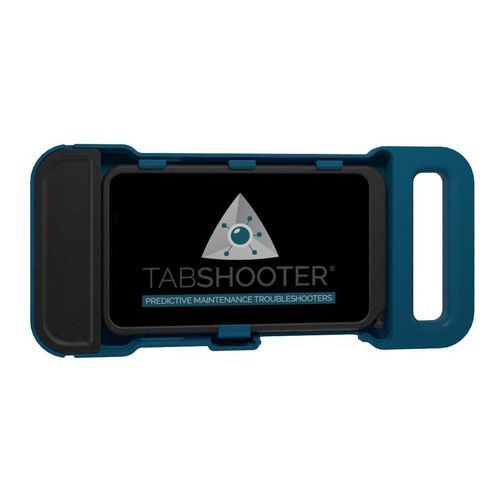

The TABSHOOTER®-TBS72-LD acoustic camera is a sensitive, easy-to-use instrument for locating gas and fluid leaks in industrial environments. Using BEAMFORMING and an array of 72 MEMS sensors, it generates acoustic images to pinpoint leak locations at distances of several dozen meters depending on site conditions. The device supports audio monitoring via wired or Bluetooth headphones to aid identification and verification.

How it works
The system combines a 72-MEMS sensor array with beamforming algorithms to produce a real-time acoustic image highlighting leak sources. It provides visual overlays and audio feedback and includes modes for single- and multi-leak detection.

Types of leaks detected

• Compressed air
• Gases (e.g. O₂, N₂, H₂, NH₃, CH₄, Argon)
• Vacuum leaks
• Steam leaks

Operational features

• Adjustable frequency range: 2 kHz to 100 kHz for filtering background noise
• Detection range: up to several dozen meters depending on environment
• Audio monitoring via wired or Bluetooth headphones
• K Quantification Function for compressed air: enter cost per Nm³ to display m³/h flow and estimated annual cost
• Optional integrated thermal camera (thermal option available)

Detection modes

• Single LEAK: visualization and pinpointing of a primary leak
• Multi LEAK: simultaneous detection and display of multiple leaks

K Quantification Function
The K function lets the operator enter the cost per Nm³ of gas (e.g. compressed air). Once a leak is identified, the device estimates flow (m³/h) and projects an annual cost based on input parameters.

Thermal camera option
The optional integrated thermal camera detects hot spots on electrical installations. Temperature range: -20 °C to 550 °C. Thermal sensor resolution: 256 × 192 px.

Accessories

• MALETTE ABS PRO protective case
• Internal battery (option)
• Internal battery charger (option)
• Wired or Bluetooth headset for audio monitoring

Technical specifications

• Brand: TABSHOOTER®
• Model: TABSHOOTER®-TBS72-LD
• Technology: BEAMFORMING
• Sensors: 72 MEMS sensors
• Frequency range: 2 kHz – 100 kHz (adjustable)
• Detection types: compressed air, gases (O₂, N₂, H₂, NH₃, CH₄, Argon…), vacuum, steam
• Detection modes: Single LEAK, Multi LEAK
• K Quantification Function: inputs cost per Nm³, outputs m³/h and estimated annual cost
• Audio output: wired or Bluetooth headphones supported
• Thermal option temperature range: -20 °C to 550 °C
• Thermal resolution (option): 256 × 192 px
• Accessories: protective case (MALETTE ABS PRO), internal battery, internal battery charger
