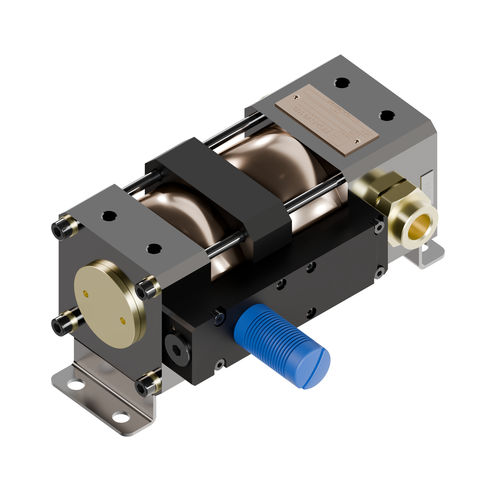

Air-driven hydraulic pump SP series
axial pistonaluminumtest

Air-driven hydraulic pump - SP series - A&T Fluid solutions - axial piston / aluminum / test

Add to favorites

Compare this product

fo_shop_gate_exact_title

Go to the A&T Fluid solutions website for more information

Characteristics

Type

axial piston

Operation

air-driven

Material

aluminum

Applications

for industrial applications, for hydraulic powerpacks, handling, test, for lubrication

Other characteristics

compact, oil, single-acting, rugged, spring, constant-pressure, wall-mounted, corrosion-resistant, small

Pressure

Max.: 530 bar
(7,687 psi)

Min.: 40 bar
(580.2 psi)

Flow rate

Max.: 7.3 l/min
(1.93 us gal/min)

Min.: 0.4 l/min
(0.11 us gal/min)

Fluid temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Description

SP-series air driven pumps are designed with the purpose of driving or pressurizing all those hydraulic applications that do not require a high uniformity of movement.The design concept of SP-series pumps allows them to maintain a constant pressure on their output port by automatically compensating all leakages that may occur on the pressurized line to which they are connected. Compression ratio size 1: 76:1 - 49:1 - 25:1 - 19:1 - 12:1 6:1 Compression ratio size 2: 69:1 - 51:1 - 30:1 - 20:1 - 16:1 - 11:1
