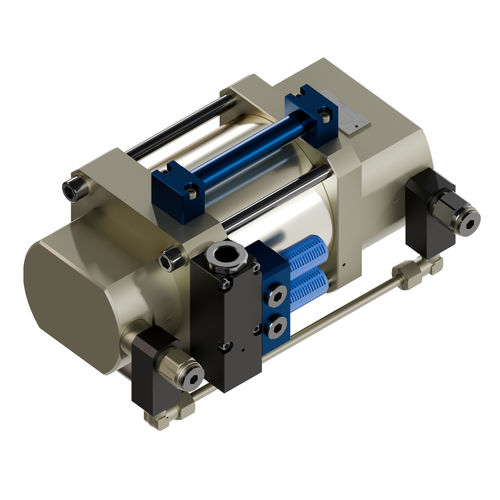

Air-driven hydraulic pump HP series
pistonsteelhandling

Air-driven hydraulic pump - HP series - A&T Fluid solutions - piston / steel / handling

Add to favorites

Compare this product

fo_shop_gate_exact_title

Go to the A&T Fluid solutions website for more information

Characteristics

Type

piston

Operation

air-driven

Material

steel

Applications

for hydraulic powerpacks, handling, for power take-off

Other characteristics

compact, single-acting, double-acting, rugged

Pressure

Max.: 550 bar
(7,977.1 psi)

Min.: 100 bar
(1,450.4 psi)

Fluid temperature

80 °C
(176 °F)

Description

HP series air-driven pumps are designed to deliver high pressures with low compressed air consumption and are available in both single-acting and double-acting versions. In the double-acting version, the pump performs a pumping action both during the forward stroke and the return stroke of the pneumatic piston. Pressures: From 100 to 550 bar Compression ratio size 1: 64:1 - 44:1 - 32:1 - 25:1 - 16:1 Compression ratio size 2: 79:1 - 48:1 - 32:1 - 25:1 - 15:1 Compression ratio size 3: 64:1 - 44:1 - 32:1 - 19:1
