Programmable orbital tube-cutting machine TSFC series

hydrauliccoldchamfering

Product Overview

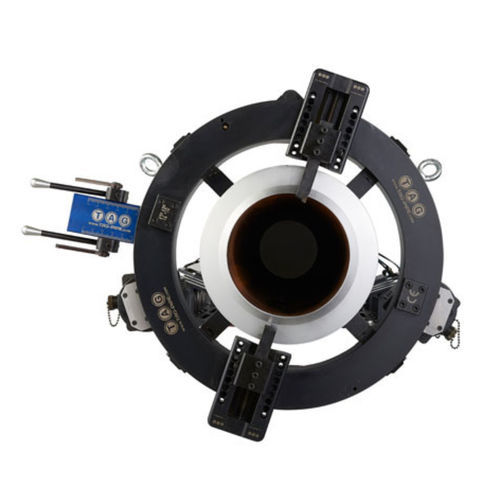

The TAG Split Frame Clamshell cold cutting and bevelling machine is a portable lathe for on-site and workshop pipe preparation. It performs precise pipe cutting, bevelling, facing and counter-boring on pipes from 1" to 48" outer diameter (model dependent). The unit features a lightweight aluminium body with a hardened steel inner ring gear on solid bearings, wide hardened clamping feet with measurement marks and externally mounted telescopic jaws on larger models. Multiple drive options (pneumatic, hydraulic, electric, servo electric) and modular tooling slides allow configuration for varied materials including carbon steel, stainless steel and exotic alloys.

Features and Advantages

• Model range covering 1" (25.4 mm) to 48" (1,220 mm) o/d; larger custom sizes available.
• Multiple power options: pneumatic, hydraulic, standard electric (110/220 V) and NC servo electric.
• Adjustable heavy-duty bearings (TAG cam roller system) for fine adjustment and smooth rotation.
• Quick, repeatable setup via hardened clamping feet with flush hex head and clear measurement markings.
• Worm-and-crown feed system for even pressure distribution, reduced vibration and lower tool wear.
• Modular tooling slides accepting cutting, bevelling, facing and counter-bore tooling.
• Telescopic jaws and larger clamping feet (55 x 115 mm where applicable) for improved stability.
• Simple two-bolt motor mount and protective metal case with foam inserts supplied up to TSFC24.

Specifications Table (models left to right: TSFC3, TSFC6, TSFC8, TSFC12, TSFC16, TSFC18, TSFC20, TSFC24, TSFC30, TSFC36, TSFC42, TSFC48)
Description | TSFC3 | TSFC6 | TSFC8 | TSFC12 | TSFC16 | TSFC18 | TSFC20 | TSFC24 | TSFC30 | TSFC36 | TSFC42 | TSFC48
Locking Range (Inch) | 1 – 3" | 1 – 6" | 2 – 8" | 6 – 12" | 10 – 16" | 12 – 18" | 14 – 20" | 18 – 24" | 24 – 30" | 30 – 36" | 36 – 42" | 42 – 48"
Locking Range (MM) | 33.4 – 88.9 mm | 33.4 – 168.3 mm | 60.3 – 219.1 mm | 168.3 – 323.9 mm | 273.0 – 406.4 mm | 323.9 – 457.0 mm | 355.6 – 508.0 mm | 457.0 – 610.0 mm | 609.6 – 762 mm | 762 - 914.4 mm | 914.4 – 1,066.8 mm | 1,066.8 – 1,219.2 mm
Ring Only Weight | 12 kg | 23 kg | 32 kg | 46 kg | 53 kg | 58 kg | 62 kg | 76 kg | 183 kg | 204 kg | 242 kg | 323 kg
Toolbox Stroke | 30 mm / 1.18" | 60 mm / 2.36" | 60 mm / 2.36" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54" | 90 mm / 3.54"
Motor Mount Positions | 1 qty | 1 qty | 1 qty | 1 qty | 2 qty | 2 qty | 2 qty | 2 qty | 2 qty | 2 qty | 4 qty | 4 qty
Striker Mount Positions | 1 qty | 1 qty | 1 qty | 2 qty | 3 qty | 3 qty | 3 qty | 3 qty | 3 qty | 4 qty | 4 qty | 5 qty
Bearing size | S | S | S | S | S | S | S | S | L | L | L | L
Spline Drive Size | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 16 mm / 0.63" | 25 mm / 0.98" | 25 mm / 0.98" | 25 mm / 0.98" | 25 mm / 0.98"
Pneumatic Idle Speed | 5 – 44 rpm | 5 – 36 rpm | 5 – 28 rpm | 5 – 21 rpm | 5 – 18 rpm | 5 – 17 rpm | 5 – 16 rpm | 5 – 15 rpm | 1 – 8 rpm | 1 – 8 rpm | 1 – 7 rpm | 1 – 6 rpm
Electric Idle Speed | 5 – 40 rpm | 5 – 20 rpm | 5 – 16 rpm | 5 – 12 rpm | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a
Servo Electric Idle Speed | n/a | 1 – 45 rpm | 1 – 36 rpm | 1 – 27 rpm | 1 – 23 rpm | 1 – 21 rpm | 1 – 19 rpm | 1 – 18 rpm | 1 – 9 rpm | 1 – 9 rpm | 1 – 8 rpm | 1 – 7 rpm
Hydraulic Idle Speed | n/a | 5 – 30 rpm | 5 – 28 rpm | 5 – 25 rpm | 5 – 20 rpm | 5 – 19 rpm | 5 – 17 rpm | 5 – 16 rpm | 1 – 8 rpm | 1 – 8 rpm | 1 – 8 rpm | 1 – 8 rpm
Pneumatic Motor Power | 1.85 hp | 1.85 hp | 1.85 hp | 1.85 hp | 1.85 hp | 1.85 hp | 1.85 hp | 1.85 hp | 3.5 hp | 3.5 hp | 3.5 hp | 3.5 hp
Double Pneumatic Motor(s) Power | n/a | n/a | n/a | n/a | 3.7 hp | 3.7 hp | 3.7 hp | 3.7 hp | 7 hp | 7 hp | 7 hp | 7 hp
Electric Motor Power | 1900 watt | 1900 watt | 1900 watt | 1900 watt | n/a | n/a | n/a | n/a | n/a | n/a | n/a | n/a
Single Servo Electric Motor Power | n/a | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw
Double Servo Electric Motor(s) Power | n/a | n/a | n/a | n/a | 3 Kw | 3 Kw | 3 Kw | 3 Kw | 3 Kw | 3 Kw | 3 Kw | 3 Kw
Hydraulic Motor Power | n/a | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp
Electric / Servo Electric Voltage | 110 / 220 volt (all models) | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt | 110 / 220 volt
Electric / Servo Electric Frequency | 50 / 60 Hz (all models) | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz
Air Working Pressure | 90 psi / 6.5 bar (all models) | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar | 90 psi / 6.5 bar
Air hose Connection | 1/2" (smaller models) up to 3/4" (larger models) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 3/4" | 3/4" | 3/4" | 3/4"
Air Consuming Flux (Double x2) | 50 cfm / 1400 LPM (smaller models) | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 50 cfm / 1400 LPM | 90 cfm / 2500 LPM | 90 cfm / 2500 LPM | 90 cfm / 2500 LPM | 90 cfm / 2500 LPM
Feed Rate per Revolution | 0.2 mm / 0.008" (all models)
Locking System | Modular (TSFC3–TSFC24) / Telescopic (TSFC30–TSFC48)

Characteristics / Technical Specifications

• Standard working range: 1" to 48" (25.4 – 1,220 mm) outer diameter (model dependent).
• Suitable materials: carbon steel, stainless steel and exotic alloys.
• Construction: lightweight aluminium body with hardened steel inner ring gear on solid bearings.
• Clamping: wide hardened clamping feet with measurement markings; telescopic jaws on larger models; larger clamping foot 55 x 115 mm where applicable.
• Drive options: pneumatic, hydraulic, electric (110/220 V), servo electric (NC) — model dependent.
• Feed system: worm and crown feeding for consistent pressure and reduced vibration.
• Tooling: modular transmission/tool slides accepting cutting, bevelling, facing and counter-bore tooling.
• Mobility & storage: portable design; protective metal case with foam inserts supplied up to TSFC24.
• Service parameters: air working pressure 90 psi / 6.5 bar; speed and power vary by model and drive type.
