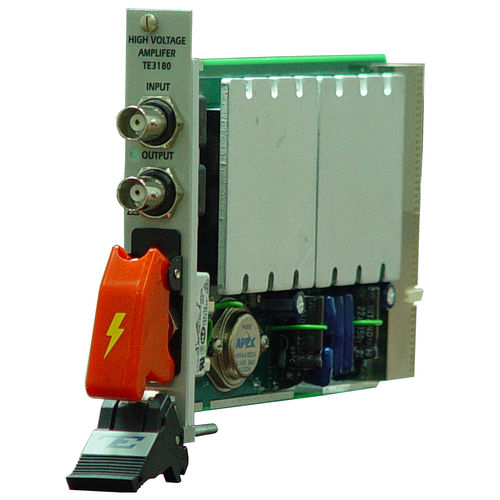

Signal amplifier 3180

PXI cardcurrent outputwide-band

Model 3180 was designed as a general purpose, wide band and high voltage amplifier, however, with specific applications in mind. It offers selectable gain of up to x50, with amplitudes of -90V to +90V and an output current of 150mA. With a large signal bandwidth of up to 300kHz and a small signal bandwidth of up to 1MHz the new TE3180 offers new possibilities to meet the requirements that couldn’t be met before in a PXI form format, without compromising bandwidth and signal integrity. Single-width PXI card Slew rate to 120V/µs Features Solves Common Problems A common problem with PXI equipment is the inability to produce high voltages resulting from low power supply rails. For example, waveform generators or similar signal source devices draw power from 12V rails. Consequently, they cannot produce signals above 10Vp-p into 50Ω. Model 3180 solves this problem by using DC/DC converters to increase rail voltages which, along with custom components and unique design, enable amplification of input signals to 180Vp-p into 0.1Ω. Safety Safety played a major role during the design of the model 3180. The high voltage path to the amplifier circuit is blocked by a front panel mechanical switch and accidental application of high power to the UUT is prevented by a safety latch. The 3180 will output high voltage signals only after the safety latch has been lifted and the high voltage switch flipped to ON position.
