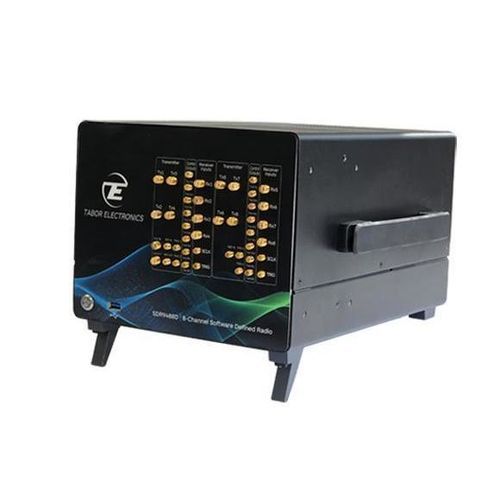

MIMO transceiver SDR9488D

radioreplay tests8-channel

Overview
The SDR9488D is an 8-channel software-defined radio transceiver in a PXIe desktop form factor. It provides 9 GS/s sampling, 16-bit resolution and >1 GHz instantaneous bandwidth per channel for demanding multi-channel RF test, radar, electronic warfare and quantum control applications.

Key Highlights

• 9 GS/s sampling rate with 16-bit resolution
• 8-channel true multi-channel / MIMO operation
• Modular PXIe architecture for compact scaling
• Deterministic, time-synchronized closed-loop operation
• FPGA-accelerated signal processing with low-latency conditional waveform generation
• >1 GHz instantaneous bandwidth per channel (ultra-wideband)
• High-throughput streaming and deep onboard memory with waveform replay

Detailed Description
The SDR9488D integrates DACs and ADCs within a single FPGA-controlled transceiver, enabling real-time feedback and conditional waveform generation without round-trip latency to a host PC. Built on an industry-standard PXIe architecture, the platform supports dense channel packing and synchronization across many units for phase-coherent arrays. The Proteus family design delivers multi-channel transmit/receive capability with high instantaneous bandwidth per channel, suitable for laboratory and system-level RF research.

Applications

• Advanced radar research, simulation and target generation
• Electronic Warfare systems including closed-loop EW and threat simulation
• Quantum computing — qubit control and low-latency reset/feedback
• Massive MIMO research and multi-channel RF testbeds

Specifications

• Model: SDR9488D
• Sampling rate: 9 GS/s
• Resolution: 16 bit
• Channels: 8 CH (multi-channel / MIMO)
• Instantaneous bandwidth: >1 GHz per channel
• Architecture: PXIe modular (Proteus Arbitrary Waveform Transceiver architecture)
• Processing: FPGA-accelerated real-time/closed-loop signal processing
• Capabilities: Deterministic time-synchronization; high-throughput streaming; deep onboard memory and waveform replay; conditional waveform generation (real-time feedback)
