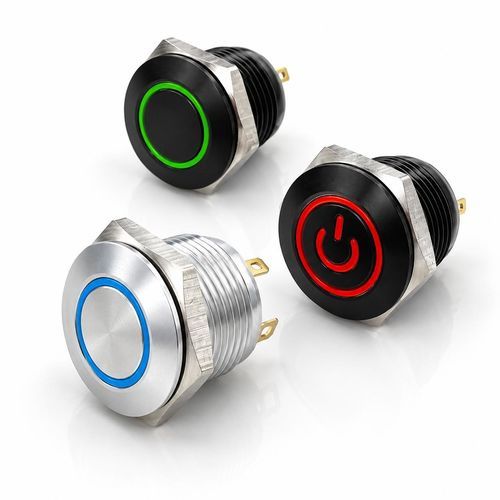

Vandal-proof push-button switch EAGLE SeriesspringIP67illuminated
Add to favorites
Compare this product
Characteristics
- Type
- spring
- Protection level
- vandal-proof, IP67
- Other characteristics
- illuminated, aluminum, LED, mechanical, on/off, latching action, electromechanical, momentary, low-profile
Description
METALLIC ANTI-VANDAL PUSH BUTTON WITH 16MM HOLE DIAMETER.
• Electromechanical contact
• NO contact, form X
• Momentary or Latched
• Led lighting (light ring or logostand-by)
• Anodized aluminum body
• IP67 front or total (wire output)
Weight - 10 g
Technology -
Electromechanical
Drill Diameter -
16
Shape Key -
Domed, Round
Contact type -
NO
Fixation -
To screw
Actuation -
MOM
Race -
2mm
Actuating force max. -
4.5N
Mechanical life -
1,000,000 cycles
Max current -
2A – 36Vdc
Initial contact resistance -
50mΩ
Insulation resistance -
1000MΩ
Electrical life -
500,000 cycles
Sealing -
IP67
Operating temperature -
-20°C~+70°C
