IP67 push-button switch KLX

IK092 NO/NCNO

Overview

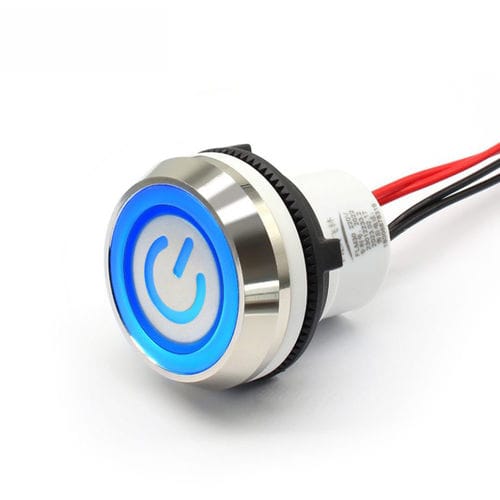

The KLX Series is a range of anti-icing Ø22 mm and Ø30 mm pushbuttons designed for demanding industrial and outdoor environments. It pairs stainless-steel construction, IP67 sealing and high switching capacity with aesthetic backlighting and customizable logo options. KLX is suited to machines, outdoor equipment, embedded systems and OEM integrations.

Functional advantages

• Switching capacity up to 10 A AC / 250 VAC (10 A @ 36 VDC specified)
• Multi‑voltage LED system (3 V to 380 V)
• IP67 ingress protection and IK09 impact resistance
• 304 stainless-steel front and durable plastics
• Advanced personalization: backlit logos, luminous crowns and custom pictograms

Customization options

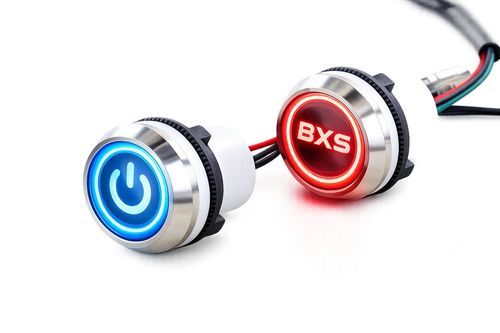

• Custom illuminated logo integrated into the button with controlled LED illumination (colour, intensity, shape adjustable)
• Tailored wiring solutions: defined cable lengths, cable types (PVC, PUR, silicone), conductor sizing, shielding, connectors (M12, M8, Harting, Sub‑D, terminal blocks, cable glands), pre‑wiring, crimping or overmoulding, durable identification and marking
• Available lighting/marking: luminous crown, logo power, personalised logo, backlight

Electrical data
Technology: electromechanical
Number of functions: 1
Max. current: 10 A - 36 VDC (series rated for high currents; up to 10 A AC / 250 VAC noted)
Rated insulation voltage: 250 VAC
Initial contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric strength: 3000 VAC
Electrical life: 100,000 cycles
Contact type: NO, 2NO
Available lighting types: luminous crown, logo power, personalised logo, backlighting
LED power supplies: 3 V, 6 V, 12 V, 24 V, 48 V, 110 V, 220 V

Mechanical characteristics
Installation diameter: 22 mm, 30 mm
Action: maintained (latching) or momentary
Mechanical lifecycle: 500,000 cycles
Travel: 2.5 mm
Fastening / Mounting: screw with nut / front-panel mounting
Body material: 304 stainless steel and glass-fibre reinforced PA66/plastics
Button material: stainless steel and plastics
Button shape: flush actuation
Termination / Connection: wires, cable

Environmental features
Operating temperature: -25°C to +85°C
Ingress protection: IP67
Impact resistance: IK09

Technical specifications

• Series name: KLX series
• Sizes: Ø22 mm and Ø30 mm
• Switch technology: electromechanical
• Switching capacity: up to 10 A (AC); 10 A @ 36 VDC specified
• Insulation voltage: 250 VAC
• Initial contact resistance: ≤ 50 mΩ
• Insulation resistance: ≥ 100 MΩ
• Dielectric strength: 3000 VAC
• Electrical life: 100,000 cycles
• Mechanical life: 500,000 cycles
• Contact configurations: NO, 2NO
• LED supply options: 3 V, 6 V, 12 V, 24 V, 48 V, 110 V, 220 V (multi‑voltage up to referenced 380 V)
• Ingress protection: IP67
• Impact resistance: IK09
• Materials: 304 stainless-steel housing, glass-fibre reinforced PA66 and plastics
• Mounting: front-panel screw with nut
• Travel: 2.5 mm
• Available customization: backlit logos, personalised pictograms, luminous crowns, tailored wiring and connector solutions
• Brand: TactHill
