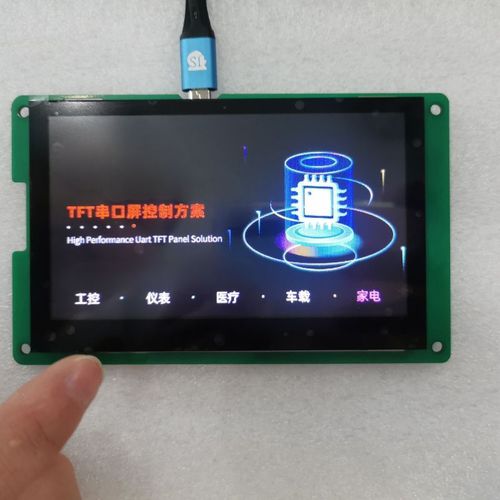

Integrated display module TBZ043C480272-01

LCD/TFTcolorcapacitive touch screen

TBZ043C480272-01 | 4.3-inch UART TFT LCD w/ CTP | 480×272 Pixels | The 4.3″ smart touch LCD with UART interface has standard LCM protocol. Easy UI and programming to achieve both display and touch. Three Methods to update the UART display, SD Card, USB, and UART port to update. Support remote protocol communication control and update. The material is RoHS-compliant. Screen Diagonal (inch): 4.3 Resolution (pixel): 480×272 Display Type: TN Display Mode: Transmissive Optimal View: 6 O’clock Touch Screen：Capacitive Touch PCBA Dimension (mm) (W x H x D)：122×75.2×7.5 LCD Module Dimensions (mm) (W x H x D)：105.5×67.2×5.0 Active Area (mm) (W x H)：95.04×53.85 Luminance (cd/m2)：230 Interface：UART Input Voltage (V)：4.5 ~ 18 Operational Temperature (°C)：-10 ~ +60 Storage Temperature (°C)：-20 ~ +80
