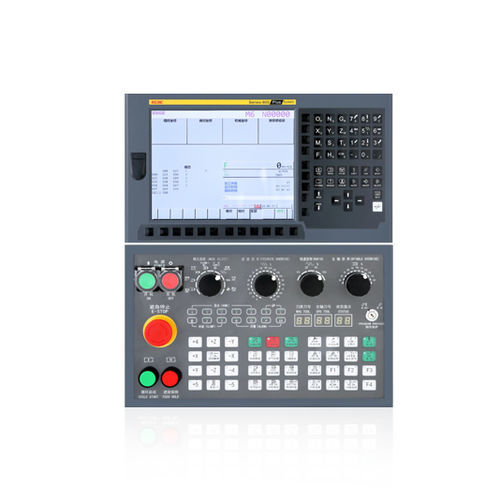

Compact CNC ECAC-800Plus

for machine toolsfor cutting machinesfor production machines

The ECAC-800Plus adopts an open architecture with an industrial grade processor, an 8.4-inch color LCD screen, and a standard machine operation station. The system integrates external interfaces such as M3 bus interface, analog and pulse control interface, I/O interface, etc., with high-speed and high-precision control, torque Control, polygon turning, online machine tool debugging guide and other functions. The system supports USB device program extension and data exchange functions, with features such as high efficiency, flexible configuration, compact structure, and ease of use. Adopting 8.4-inch TFT-LCD high-definition LCD display, supporting Chinese and English language display, supporting tool path graphic display and simulation, M3 bus control mode, maximum control axis of 5, maximum linkage axis of 5, PLC control axis of 2, supporting torque control; Interpolation cycle of 2ms, supporting nanometer level instruction parsing and interpolation operation, supporting 2 fully functional spindles, both of which can achieve spindle positioning and CS axis quick switching, with turning milling composite function and polygon processing function, supporting cylindrical interpolation and polar coordinate Supports 2-channel 0V-10V analog voltage output, 2-channel pulse output, supports equidistant straight/tapered threads, variable pitch straight/tapered threads, with manual pulse test cutting and interruption functions, supports online programming wizard, online debugging wizard, and servo parameter online configuration function;
