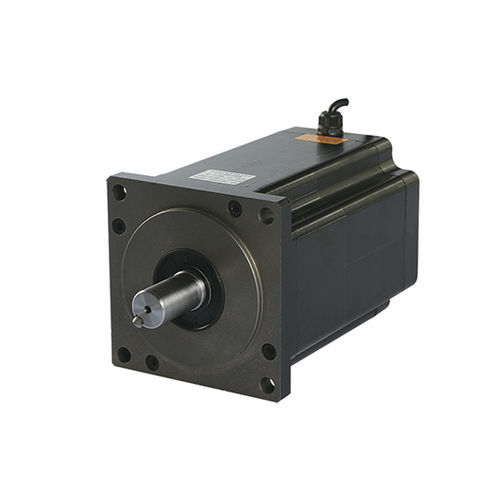

Stepper motor 150BYG series

DC220 Vindustrial

Step angle: 1.2 ° Step accuracy: ± 5% Insulation resistance: 500VDC 100MQMin Voltage resistance: 500VAC for 1 minute Environmental temperature: -20~+50 ℃ Temperature rise: 80 ℃ Max (rated current) Axial clearance: 0.08mm Max (450g load) Radial runout: 0.02mm Max (450g load) Insulation level: B Step angle of 1.2 °/step, improved accuracy, sufficient torque, and smooth motor operation without losing steps. Short delivery time, flexible customization, high consistency of production, mature and reliable; The motor can operate normally without taking any measures, even if there are fluctuations in power supply voltage or temperature changes, without overloading. The motor can achieve accurate positioning by controlling the number of pulses to control the angular displacement. At the same time, the speed and acceleration of the motor can be controlled by controlling the pulse frequency to achieve speed regulation.
