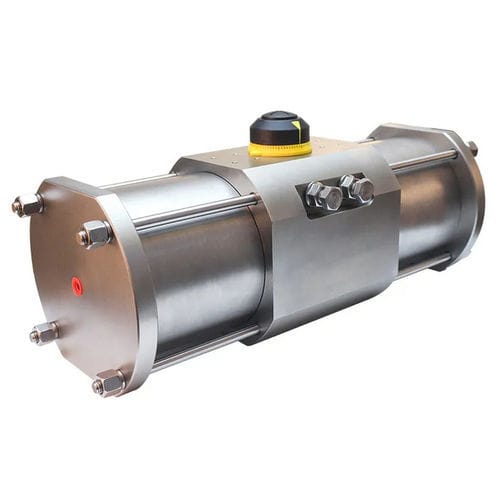

Pneumatic actuator JHS series

rotaryrack-and-piniondouble-piston

SUS316 stainless steel pneumatic actuator, with higher corrosion resistance, provides more options for special using environments 2. Product Parameter (Specification) Structure:Rack and pinion structure Application: ball valve, butterfly valve, plug valve and other valves Cylinder body material:Stainless steel. Control air source:Through filtered compressed air, no need lubricate oil，the oil must suit for NBR when in lubricated condi Flange standard:ISO 5211 / DIN3337 Operating temperature: Standard Low temperature -40℃~80℃ High temperature -20℃~120℃ 3.Product Features SUS316 stainless steel pneumatic actuator have the below characteristics: ●Structure: compact rack and pinion pneumatic actuator. ●Used for angular stroke valves, ball valves, butterfly valves, plug valves and other valves. ●Mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard. ●Certificate obtained : ATEX, CE, SIL3, ISO9001:2015 certificate. ●High-end products, excellent quality, complete certification system. ●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.
