Heat sink enclosure HY seriesfor desktop computersmodularextruded aluminum

heat sink enclosure
heat sink enclosure
heat sink enclosure
heat sink enclosure
heat sink enclosure
heat sink enclosure
heat sink enclosure
Add to favorites
Compare this product
indicative price

Characteristics

Construction
for desktop computers
Configuration
modular
Material
extruded aluminum
Other characteristics
heat sink
Application
electronic equipment, industrial, for electronics, for amplifiers, for IPC, for power supplies
Protection level
robust, IP40, shielded
Width

Max.: 430 mm (17 in)

Min.: 230 mm (9 in)

Height

Max.: 149 mm (6 in)

Min.: 44 mm (2 in)

Depth

Max.: 330 mm (13 in)

Min.: 231 mm (9 in)

Description

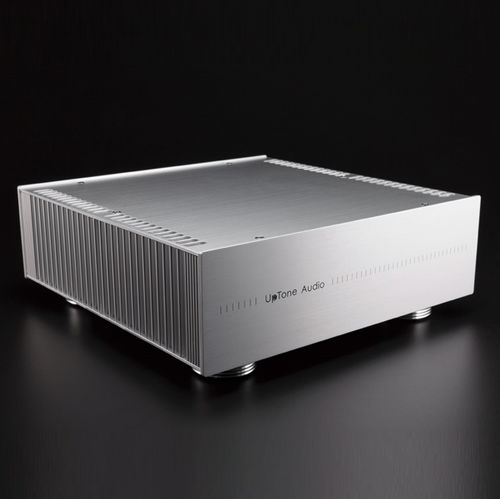

Excellent cooling performance with heat-sink side plates. 56 sizes, and 2 different colors. Tough and robust enclosure from using aluminium extrusion parts. Excellent Cooling Performance The waved surface on the fins increases cooling performance. APPLICATION EXAMPLE Linear Power Supply ■ Considered in many countries as the premier DC power supply for use in high-end audiophile music systems, the JS-2 is an entirely unique design incorporating a choke-fi lter, shielded R-core transformer, ultra-low noise regulation, and a special Kelvin-sense voltage/current feedback loop for one of the outputs. ■ Offering two outputs with independently adjustable output voltage settings (5/7/9/12V), it is capable of providing a continuous current of up to 5 amps at 5V and 7.4 amps at 12V. ■ Dual-primary transformer and reversible fuse block power input module allow for worldwide use. Industrial Fanless Computer ■ Compact HDD recorder equipped with a slim DVD-R/RW, 3.5HDD and MPEG-2 encoder with on-board TV tuner installed on the HY99-23-23SS model. ■ Fanless unit utilizing a heat pipe cooling system connected to heat-sink side plates and DC/AC adapter. This enables the system to be more compact and operate with minimal noise as compared to a CPU fan cooler system. ■ Stylish and elegantly designed with a hairline finish. ■ Excellent cooling performance with the heat-sink side plates. ■ Now available in 56 sizes, and 2 different colors. ■ Tough and robust enclosure from using aluminium extrusion parts. ■ Simple and easy to assemble construction. ■ Flat back heat-sink plates for more effective heat spreading.
