Waterproof enclosure WG serieswall-mountedpole-mountedrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mounted, pole-mounted
- Configuration
- rectangular, modular
- Material
- ASA
- Application
- outdoor, for telecom applications
- Protection level
- waterproof, IP68
- Other characteristics
- sealed, with lid, equipped
- Width
Min.: 100 mm
(3.9 in)Max.: 300 mm
(11.8 in)- Height
Min.: 55 mm
(2.2 in)Max.: 150 mm
(5.9 in)- Depth
Min.: 150 mm
(5.91 in)Max.: 400 mm
(15.75 in)
Description

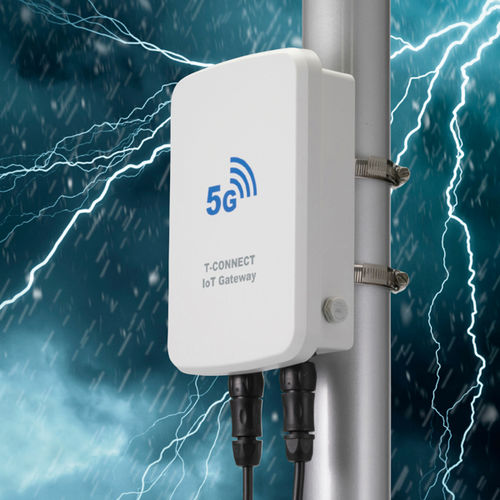

IP68 high performance plastic enclosure which withstands immersion in water up to 1m for 24 hours.
Equipped with a silicone waterproof gasket, and supported by multiple enclosing screws from the rear side, it allows the enclosure to maintain a stable high waterproofing capability.
Self-tapping captive screws are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover.
Suitable for communication equipment and network devices to be installed outdoors.
Specifications
See TAKACHI website for accessories and optional parts.
Equipped with a silicone waterproof gasket, and supported by multiple enclosing screws from the rear side, it allows the enclosure to maintain a stable high waterproofing capability.
Self-tapping captive screws are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover.
Suitable for communication equipment and network devices to be installed outdoors.
Specifications
- Material : ASA UL94HB
- Protection class : IP68
- Operating temperature : -30°C to +60°C
- 16 sizes available.
- Available in Off-white.
See TAKACHI website for accessories and optional parts.
