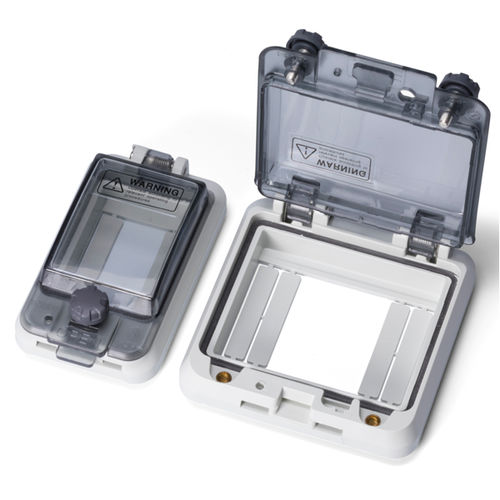

Enclosure with hinged window IW seriespanelrectangularsquare
Add to favorites
Compare this product
Characteristics
- Construction
- panel
- Configuration
- rectangular, square
- Material
- ABS, polycarbonate, PC
- Application
- industrial, electronic equipment, outdoor, electronics, for instrumentation, for wired applications
- Protection level
- water-resistant, IP54, IP64
- Other characteristics
- with hinged window
- Width
Max.: 309.2 mm
(12.2 in)Min.: 57.2 mm
(2.3 in)- Height
Max.: 31 mm
(1.2 in)Min.: 26 mm
(1 in)- Depth
Max.: 125.2 mm
(4.93 in)Min.: 95.2 mm
(3.75 in)
Description
IP64 water resistant see-through hinged inspection window.
Smartly designed window for protection of switches and displays, etc.
Use in situations where component status, access and maintenance is necessary.
Knurled thumb screws for easy securing.
Specifications
See TAKACHI website for accessories and optional parts.
Smartly designed window for protection of switches and displays, etc.
Use in situations where component status, access and maintenance is necessary.
Knurled thumb screws for easy securing.
Specifications
- Material : Polycarbonate plastic (UL94V-2), PC + ABS (UL94V-0)
- Protection class : IP64 (IP54 Category 2 for some models
- Operating temperature : -20°C ~ +75°C
- 10 sizes available.
- Available in Light Grey.
See TAKACHI website for accessories and optional parts.
