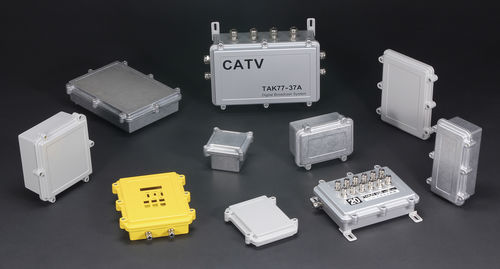

Control electrical enclosure HQ series

wall-mountedmetalaluminum

Overview
A double-gasket construction provides both IP67 environmental protection and EMC/EMI shielding, suitable for demanding industrial and communications applications.

Key performance
Protection class: IP67
Operating temperature: -40°C to +105°C
Recommended fastening torque: 1 N·m

Product No. / Dimensions
Columns: Product No., External W (mm), External H (mm), External D (mm), Internal w (mm), Internal h (mm), Internal d (mm), Weight (g), Color / Finish
HQ15-10-5G, 150, 50, 100, 125.5, 35.9, 75.5, 442, Light gray / Powder coated
HQ15-10-5N, 150, 50, 100, 125.5, 35.9, 75.5, 442, Unfinished
HQ15-10-8G, 150, 75, 99.5, 123.7, 60.9, 73.7, 494, Light gray / Powder coated
HQ15-10-8N, 150, 75, 99.5, 123.7, 60.9, 73.7, 494, Unfinished
HQ16-16-8G, 162, 80, 162, 132.7, 67, 129.66, 715, Light gray / Powder coated
HQ16-16-8N, 162, 80, 162, 132.7, 67, 129.66, 715, Unfinished
HQ20-15-5G, 200, 50, 150, 175.5, 35.9, 125.5, 753, Light gray / Powder coated
HQ20-15-5N, 200, 50, 150, 175.5, 35.9, 125.5, 753, Unfinished
HQ20-15-8G, 200, 75, 150, 173.7, 60.9, 123.7, 849, Light gray / Powder coated
HQ20-15-8N, 200, 75, 150, 173.7, 60.9, 123.7, 849, Unfinished
HQ26-18-6G, 262, 55, 181.5, 234.4, 42, 154.4, 961, Light gray / Powder coated
HQ26-18-6N, 262, 55, 181.5, 234.4, 42, 154.4, 961, Unfinished
HQ27-17-7G, 274.2, 66, 173.2, 249, 51.9, 148, 1129, Light gray / Powder coated
HQ27-17-7N, 274.2, 66, 173.2, 249, 51.9, 148, 1129, Unfinished
HQ27-17-10G, 274.2, 100, 172.7, 249, 85.9, 148, 1287, Light gray / Powder coated
HQ27-17-10N, 274.2, 100, 172.7, 249, 85.9, 148, 1287, Unfinished

Mounting plate (Option) - available SKUs
HQP15-10 (PDF available)
HQP16-16 (PDF available)
HQP20-15 (PDF available)
HQP26-18 (PDF available)
HQP27-17 (PDF available)

Optional parts

• Mounting plate for HQ - HQP series
• Mounting bracket for HQ - HQF series
• Pole mounting bracket - WGMB-2SW
• Pole mount bracket for diecast aluminum box - SSK_AL
• PCB mounting screw for HQ - MT3.5-8K
• EMC shielded cable gland - AGE series
• IP68 metal cable gland - AGM series
• Low-cost IP67 metal cable gland - RMC series
• Metal ventilation plug - CVP-M series
• Stainless steel protective vent - PMF-12M
• Protective vent - PMF series

Similar products

• IP68 Diecast aluminium enclosure - DW series
• IP68 Heatsink diecast aluminium enclosure - DWH series
• IP67 Diecast aluminum box - BDN series
• IP68 Flanged aluminum enclosure - AW series
• IP68 Heatsink aluminum enclosure - AWN series
• Flanged aluminium EMC shield case - EXEF series
• Aluminium EMC shielded case with corner guard - EXPE series

Features / Technical specifications

• Construction: Diecast aluminum enclosure with double gasket for IP67 and EMC shielding
• Protection: IP67
• EMC/EMI shielding: Yes
• Operating temperature range: -40°C to +105°C
• Recommended fastening torque: 1 N·m
• Finishes available: Light gray powder coated and unfinished
• Available sizes: 8 exterior/internal dimension variants (see product dimension table)
• Typical applications: CATV terminals, fiber optic transmitters, wireless access points, FA controllers, embedded devices and industrial instrumentation
