Air filter VE7 series
dustmembranefor motors

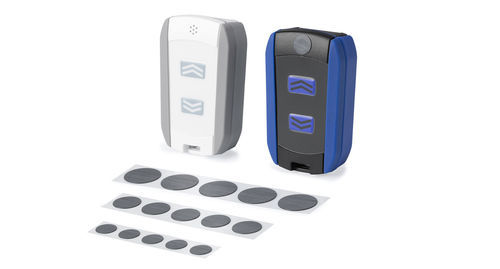

Air filter - VE7 series - TAKACHI Electronics Enclosure Co., Ltd. - dust / membrane / for motors

Add to favorites

Compare this product

Go to the TAKACHI Electronics Enclosure Co., Ltd. website for more information

Characteristics

Designed for

air, dust

Filtration element

membrane

Applications

for ventilation, for motors

Other characteristics

hydrophobic, waterproof

Operating pressure

7,000 Pa
(1.015 psi)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

Product description

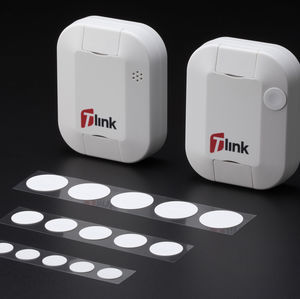

Vent filter protects the enclosure from deformation by equalizing internal and external pressure differences and vents gas generated inside the enclosure. The VE7 single-membrane design offers excellent breathability to reduce internal humidity and suppress condensation. A highly water- and oil-repellent membrane shields electronic components from water, corrosive liquids, salts and dust. Suitable for adhesive mounting on flat plastic or metal surfaces; recommended for outdoor lighting, drone motors and other applications requiring high waterproofing performance.

Technical Data
Protection class : Dustproof IP6X
Attached on the enclosure interior : Waterproof IPX4, IPX7, IPX8 (2 m depth / 1 h)
Attached on the enclosure exterior : Waterproof IPX4, IPX5, IPX6, IPX7, IPX8 (2 m depth / 1 h)
Airflow : 290 ml / min / cm2 (at 7 kPa)
Test temperature : -40°C ~ +125°C

Product No. / Dimensions
Product No. | Outer diameter | Effective diameter | Standard thickness (mm) | Weight (g)/pack | Pack of
VE70510 | Φ10.2 | Φ5.5 | 0.34 | 0.2 | 5 pcs
VE70814 | Φ14 | Φ8 | 0.34 | 0.3 | 4 pcs
VE70919 | Φ19.1 | Φ8.9 | 0.34 | 0.4 | 3 pcs

Features / Specifications

Protection class: Dustproof IP6X
Interior attachment waterproof ratings: IPX4, IPX7, IPX8 (2 m depth / 1 h)
Exterior attachment waterproof ratings: IPX4, IPX5, IPX6, IPX7, IPX8 (2 m depth / 1 h)
Airflow: 290 ml / min / cm² (at 7 kPa)
Operating temperature range: -40°C to +125°C
Single-membrane construction with highly water- and oil-repellent membrane to protect against water, corrosive liquids, salts and dust
Recommended adhesion to flat plastic or metallic surfaces
Typical applications: outdoor lighting, drone motors and other high-waterproofing requirement applications
Available product numbers and dimensions: VE70510 (Φ10.2 outer, Φ5.5 effective, 0.34 mm thickness, 0.2 g/pack, 5 pcs), VE70814 (Φ14 outer, Φ8 effective, 0.34 mm thickness, 0.3 g/pack, 4 pcs), VE70919 (Φ19.1 outer, Φ8.9 effective, 0.34 mm thickness, 0.4 g/pack, 3 pcs)
