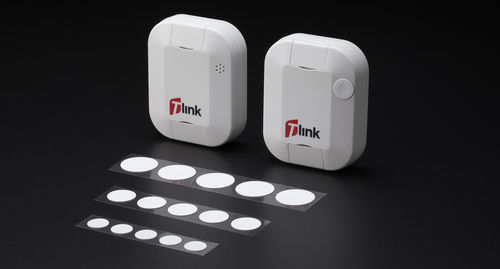

Air filter VE9 series

liquidwaterparticulate

Product overview
Adhesive protective vent filter designed to equalize internal and external pressure, vent gases generated inside enclosures and reduce condensation by improving breathability. The water- and oil-repellent membrane protects electronic components from water, corrosive liquids, salts and dust. Its single-membrane construction allows use on both the interior and exterior of enclosures while maintaining superior water resistance. Recommended for adhesion onto flat plastic or metallic surfaces; suitable for outdoor camera glass, sensitive sensor components and other applications requiring responsiveness and water/dust protection.

Category

• Adhesive vent filter
• Internal pressure adjustment vent
• Membrane filter
• Vent filter patch type
• Protective vent with adhesive
• GORE protective vent

Technical Data

• Protection class: Dustproof IP6X
• Waterproof rating when attached on enclosure interior: IPX4, IPX7, IPX8 (2 m depth / 1 h)
• Waterproof rating when attached on enclosure exterior: IPX4, IPX5, IPX6, IPX7, IPX8 (2 m depth / 1 h)
• Airflow: 1,150 ml/min/cm² (at 7 kPa)
• Operating/test temperature range: -40°C to +125°C
• Recommended mounting: Adhere onto flat plastic or metallic surfaces
• Application examples: Preventing condensation on outdoor camera glass parts; sensor parts requiring responsiveness and water/dust resistance
• VE90510 — Outer diameter: Φ10.2; Effective diameter: Φ5.5; Thickness: 0.34 mm; Weight per pack: 0.2 g; Pack: 5 pcs
• VE90814 — Outer diameter: Φ14; Effective diameter: Φ8; Thickness: 0.34 mm; Weight per pack: 0.3 g; Pack: 4 pcs
• VE90919 — Outer diameter: Φ19.1; Effective diameter: Φ8.9; Thickness: 0.34 mm; Weight per pack: 0.4 g; Pack: 3 pcs
