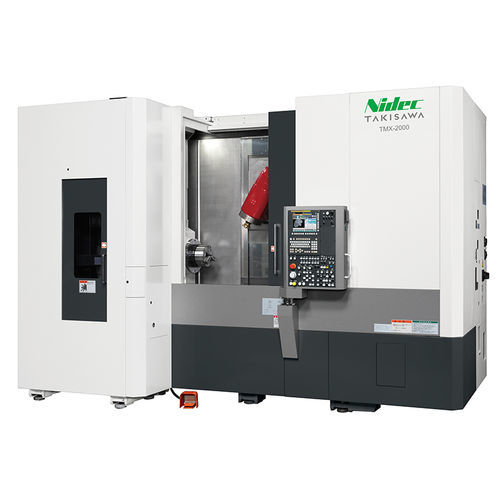

CNC milling-turning center TMX-2000

5-axisteach-inhigh-precision

Overview

The TMX-2000 is a multi-tasking CNC turning-milling machine designed for large-axis travel to process larger and more complex workpieces in a single chucking. With a fixed C-axis and an indexable tool spindle (B-axis), it combines milling, end-face work and turning operations without reclamping.

Main features

• Large axis travel: X 640 mm / Y 230 mm / Z 690 mm enabling milling and end-face drilling in one chucking with the C-axis fixed.
• Tool spindle indexing (B-axis): extends machinable range; high-accuracy indexing up to ±130° in 1° increments to consolidate multiple processes on a single tool.
• High-accuracy turning: turning tool is positioned and locked to the tool spindle via a precision index coupling; supports multi-functional OD turning tools.
• Integrated interactive programming (TiwaP-1): program creation, 3D simulation and execution without G-code knowledge; automatic recognition of machining spindle and process order.

Technical specifications

• Right spindle stock: None
• Tailstock (NC Servo Type): Standard (included)
• Chuck size: 8 in
• Type of turret: Tool spindle with ATC
• Max. turning diameter: Ø500 mm
• Max. turning length: 610 mm
• Bar capacity (left spindle): Ø65 mm
• Bar capacity (right spindle): None
• B-axis swivel range: 230° (±115°)
• Left spindle speed: 5000 min⁻¹
• Right spindle speed: None
• Tool spindle speed: 12000 min⁻¹
• ATC tool storage capacity: 40 [OP. 80]
• Rapid traverse rate (m/min): X: 40 / Z: 40 / Y: 40 / A: 20
• Left spindle motor (kW) (30 min/cont.): 15 / 11
• Right spindle motor (kW): None
• Tool spindle motor (kW) (S3 25%/cont.): 11 / 7.5
• Machine height: 2783 mm
• Required floor space: 4150 × 2923 mm
• Machine weight: 13,700 kg

Applications

• Components requiring combined turning and milling (automotive, hydraulic, aerospace components)
• Complex shafts, flanges and high-precision end faces
• Small-series production and prototyping requiring single-chucking processes

Software

Integrated TiwaP-1 software supports program creation, 3D simulation and automated execution to reduce setup time and simplify operator input.
