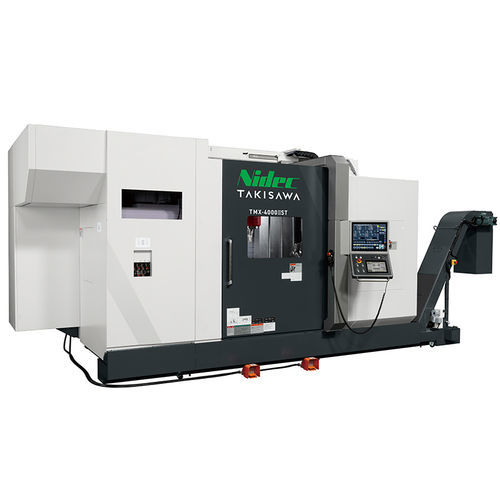

CNC milling-turning center TMX-4000

universalwith turrethigh-precision

The TMX-4000 is a multitasking turning–milling center that combines a high-power tool spindle with precision left and right spindles to enable complex single‑chuck machining of large workpieces, including milling, end‑face drilling and turning. Its travel ranges and rigid construction support heavy cutting while maintaining high indexing and positioning accuracy.

Highlights

• Multitasking configuration: tool spindle with ATC plus left/right spindles for one‑chuck operations.
• B‑axis uses a direct‑drive motor for rotation and a diaphragm brake for clamping, delivering high speed and high accuracy (minimum indexing accuracy 0.0001°).
• Tool spindle equipped with automatic tool changer (ATC) for flexible machining; tool spindle speed up to 12,000 min⁻¹.
• Designed to handle heavy‑duty cutting while preserving precise indexing and positioning.

Operation & software

• Multi‑monitor operation panel (standard 15" touch; options: 19" and swipable 10.4" sub‑screen) for intuitive information display and control.
• iHMI (Human–Machine Interface): workflow‑oriented operation across "Planning", "Machining" and "Improvement"; includes careless‑mistake prevention and collision avoidance; supports conversational programming (PANEL iH Pro) and machining program creation.
• Takisawa TiwaP‑1 (optional): interactive programming system with program creation, 3D simulation (cutting result / tool path) and optimized spindle/C‑axis execution without requiring G‑code expertise.

Related media

• TMX‑4000 introduction video
• Talk About "TMX‑4000"
• Large diameter U‑drilling (SUS304)
• High‑feed/high‑speed cutting (SUS304)

Technical specifications

• Model: TMX‑4000
• Chuck size: 10 + 10 inch (variants exist)
• Type of turret: tool spindle with ATC
• Maximum turning diameter: Ø500 mm
• Maximum turning length: 1500 mm (varies by chuck type)
• Bar capacity (left spindle): Ø80 mm (depends on chuck/cylinder type)
• B‑axis swivel range: 230° (±115°)
• Left spindle speed: 4,000 min⁻¹
• Right spindle speed: 4,000 min⁻¹ (may be absent on some variants)
• Tool spindle speed: 12,000 min⁻¹
• ATC tool storage capacity: 40 (options: 80, 120)
• Rapid traverse rates: X1: 40 m/min · Z1: 40 m/min · Y1: 40 m/min · A: 30 m/min
• Left spindle motor (S2 30 min / continuous): 26 / 22 kW
• Right spindle motor (S2 15 min / continuous): 22 / 15 kW (if applicable)
• Tool spindle motor (S3/S6 25%/continuous): High: 22 / 15 kW
• Machine height: 3,160 mm
• Required floor space (including side‑discharge chip conveyor, operation panel and ATC magazine): T40: 6,950 × 4,478 mm
• Machine weight: approx. 17,000 kg
