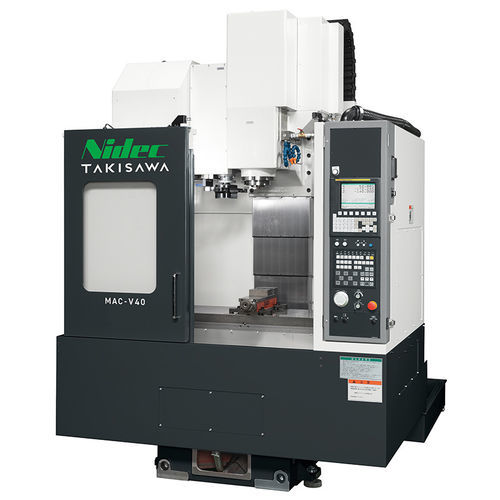

3-axis machining center MAC-V40verticalBT 4020 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 30 tools, 20 tools
- Associated functions
- milling, cutting
- Applications
- for the automobile industry, for the mold industry, for small parts production
- Other characteristics
- high-performance, high-precision, high-productivity, high-rigidity, high-speed
- X travel
650 mm
(25.59 in)- Y travel
410 mm
(16.14 in)- Z travel
460 mm
(18.11 in)- Rotational speed
6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Table load capacity
300 kg
(661 lb)- Weight
4,800 kg
(10,582.19 lb)- Overall length
1,900 mm
(74.8 in)- Overall width
2,595 mm
(102.2 in)- Overall height
2,593 mm
(102.1 in)
Description
Overview
Key features
Travel
Machine main specifications
Applications & options
- The MAC-V40 is a #40 vertical machining center by Takisawa, engineered for increased rigidity to enable high-speed, heavy-duty cutting of small and medium parts while maintaining high accuracy and cost-performance.
Key features
- High-rigidity oriented design to improve machine stiffness
- Rigidity improvements enable high-speed, heavy-duty cutting of small and medium parts, enhancing reliability and cost-performance
- Combines high-speed heavy-cutting capability with high accuracy
Travel
- X: 650 mm
- Y: 410 mm
- Z: 460 mm
Machine main specifications
- X-Axis Travel (Table Longitudinal): 650 mm
- Y-Axis Travel (Saddle Cross): 410 mm
- Z-Axis Travel (Spindle Head Vertical): 460 mm
- Table Working Area: 900 × 410 mm
- Table Max. Loading Capacity: 300 kg
- Spindle Speed: 6000 min-1 [option: 8000]
- Type of Tool Shank / Tool Storage Capacity: BT40 / 20 (option: 30)
- Spindle Motor: 11 / 7.5 kW
- Electric Power: 18.5 kVA
- Machine Height: 2593 mm
- Required Floor Space: 1900 × 2595 mm
- Machine Weight: 4800 kg
Applications & options
- Suitable for machining small- to medium-size parts in automotive, general machinery, mold & die and precision component production
- Options include 8000 min-1 spindle, 30-tool magazine and other configuration choices to match process requirements
