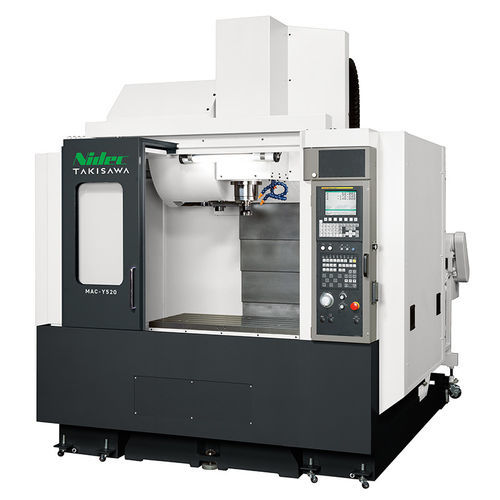

3-axis machining center MAC-Y520verticalBT 4030 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 30 tools
- Associated functions
- milling
- Applications
- for large workpieces
- Other characteristics
- with tool changer
- X travel
850 mm
(33.46 in)- Y travel
520 mm
(20.47 in)- Z travel
610 mm
(24.02 in)- Rotational speed
Min.: 8,000 rpm
(50,265 rad.min-1)Max.: 12,000 rpm
(75,398 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Table load capacity
800 kg
(1,764 lb)- Weight
6,500 kg
(14,330.05 lb)- Overall length
2,400 mm
(94.5 in)- Overall width
2,870 mm
(113 in)- Overall height
2,807 mm
(110.5 in)
Description
The MAC-Y520 is a #40 vertical machining center that provides #50-class travel to machine larger workpieces while retaining compatibility with #40 tooling.
Key features
Travel
Technical specifications
Key features
- Compatible with existing #40 tooling and drill-center tools (BT40), allowing reuse of current tool inventory.
- Extended travel strokes (X/Y/Z) enable multi-operation machining of larger parts such as casings and frames.
- Delivers #50-class travel performance in a #40 tool-shank platform to expand workpiece capacity without changing tool standards.
Travel
- X: 850 mm
- Y: 520 mm
- Z: 610 mm
Technical specifications
- Table working area: 1000 × 520 mm
- Table max. loading capacity: 800 kg
- Spindle speed: 8,000 min⁻¹ (option: 12,000)
- Tool shank / tool storage capacity: BT40 / 30 tools
- Spindle motor: 11 / 7.5 kW
- Electric power: 18.8 kVA
- Machine height: 2,807 mm
- Required floor space: 2,400 × 2,870 mm
- Machine weight: 6,500 kg
