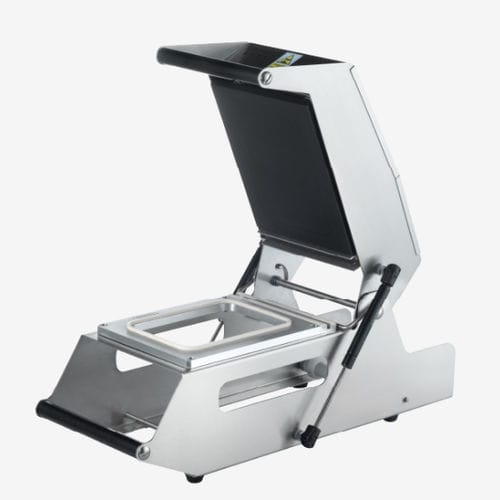

Linear array tray sealer TS-150

manualfor the food industryfor trays

• Manual tray sealing machine totally manufactured in AISI 304 stainless steel. • Die sets in anodized aluminum. • Manual tray sealing machine. • Cut of the film by the back side. • Digital panel with sealing temperature regulator (0°-230° C). • Ergonomic and robust model. • Easy mold change, molds are interchangeable in a few seconds. • Easy and fast heating of the machine. • It allows to work with different types of tray materials, PP, PET, ALUMINIUM… • Voltage: 220 V/ 1ph/ 50 Hz. • Maximum sealing surface: 210×155 mm. • Film roll width: 150 mm. • Power: 900 W. • Includes 137×192 mm die set. Standard molds • 137×96 mm (2 trays). • 1/8 GN (168×130 mm). • Any type and shape of die set can be manufactured according to the customer trays. Food thermosealing is a method of closing trays by applying pressure and heat to a plastic film using a manual, semi-automatic or automatic tray sealer such as those produced by AK RAMON. It is also known as heat sealing and serves to isolate the products stored in the container from air and other external agents such as bacteria and microbes. The main characteristics of a good manual tray sealer are that it can be adapted to all types of heat sealable containers and guarantees rapid heating of the Teflon plate thanks to a power that must be at least 900 W to reach 230º C.
