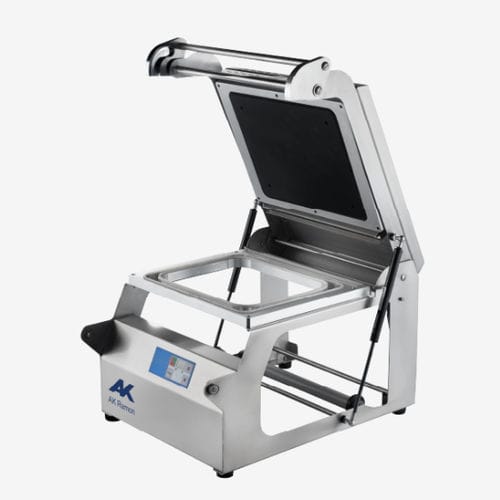

Linear array tray sealer TS-170 CUT

manualvacuumfor the food industry

• Totally manufactured in AISI 304 stainless steel. • Die sets in anodized aluminum. • Manual tray sealer. • Perimetral cutting with the shape of the tray. • Digital panel with sealing temperature regulator (0°-230° C). • Ergonomic and robust model. • Easy mold change, molds are interchangeable in a few seconds. • Easy and fast heating of the machine. • It allows to work with different types of tray materials, PP, PET, ALUMINIUM… • Voltage: 220 V/ 1ph/ 50 Hz. • Maximum sealing surface: 320×260 mm. • Film roll width: 360 mm. • Power: 1500 W. • Includes 320×260 mm die set. Standard molds • 1/4 GN (260×160 mm). • Any type and shape of die set can be manufactured according to the customer trays.
