Hydraulic strainer YR-970
flangestainless steelY

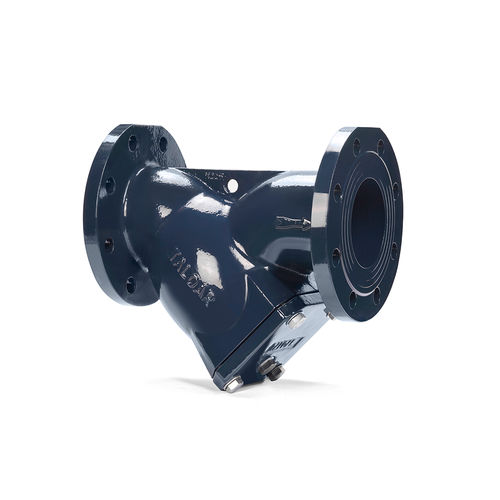

Hydraulic strainer - YR-970 - Taloar - flange / stainless steel / Y
Hydraulic strainer - YR-970 - Taloar - flange / stainless steel / Y
Hydraulic strainer - YR-970 - Taloar - flange / stainless steel / Y - image - 2
Add to favorites
Compare this product

Characteristics

Options
hydraulic, Y, stainless steel, flange, ductile iron

Description

Ductile Iron Y Strainer YR-970 2 ″ - 16 ″ PN16/235PSI/Class125 Stainless Steel Screen, Drain Outlet Flange Dimension EN1092-2, ANSI B16.1 Class 125 Classification: Y Strainer Hydraulic Pressure Test Body 2.4Mpa/24Bar Pressure Ratings 1.0 Mpa at 180°C 1.6 Mpa at -10°C-120°C Materials List No - Part - Specification - BS EN - ASTM 1 - Body - Ductile Iron - EN JS1030 - A536 65-45-12 2 - Screen - Stainless Steel - BSEN 10088-1 - AISI 304 3 - Sealing Ring EPDM - 4 - Bonnet - Ductile Iron - EN JS1030 - A536 65-45-12 5 - Drain Plug - Stainless Steel - BSEN 10088-1 - AISI 304 6 - Bolt - Stainless Steel - BSEN 10088-1 - AISI 304
