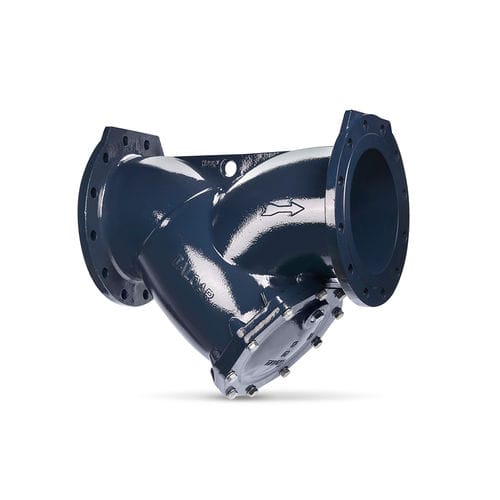

Hydraulic strainer YR-975

flangestainless steelY

Ductile Iron Y Strainer YR-975 2 ″ - 16 ″ PN25/350PSI/Class250 Stainless Steel Screen, Drain Outlet Flange Dimension EN1092-2, ANSI B16.1 Class 125 Classification: Y Strainer Hydraulic Pressure Test Body - 3.75Mpa/37.5Bar Pressure Ratings 1.0 Mpa at 180°C 1.6 Mpa at -10°C-120°C Materials List No - Part - Specification - BS EN - ASTM 1 - Body - Cast Iron - BSEN 1563 - A536 65-45-12 2 - Screen - Stainless Steel - BSEN 10088-1 AISI 304 3 - Bonnet - Cast Iron - BSEN 1563 - A536 65-45-12 4 - Gasket - Graphite - 5 - Drain Plug - Stainless Steel - BSEN 10088-1 AISI 304 6 - Bolt - Stainless Steel BSEN 10088-1- AISI 304
