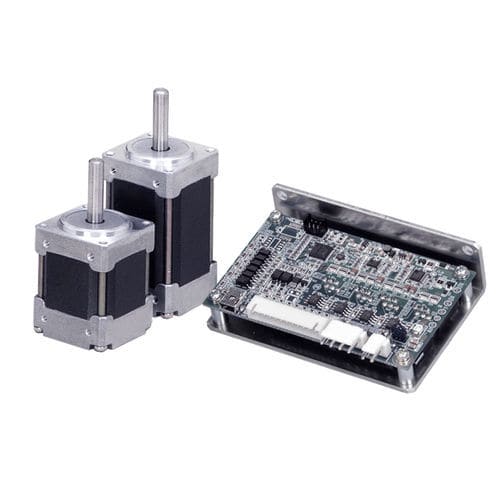

Stepper motor TS3692N1,N11DC12 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- stepper, DC
- Voltage
- 12 V
- Configuration
- permanent magnet, micro
- Protection class
- maintenance-free
- Intensity
Min.: 0.19 A
Max.: 4 A
- Torque
Min.: 0.013 Nm
(0.009588 ft.lb)Max.: 0.2 Nm
(0.147512 ft.lb)- Diameter
Min.: 20 mm
(0.79 in)Max.: 86 mm
(3.39 in)
Description
2-Phase Step Motors / Drivers
High accuracy, High torque, and High speed.
Features
Step motors are able to start and stop, rotate and reverse.
Rotational angle is proportional to the number of input pulses.
Rotational speed is proportional to the input pulse rate.(pulse ratio)
Even in the state of non-exciting, some self-holding torque(Detent torque) is generated because the permanent magnet is used.
High torque, high response and light weight.
Micro step drive, high accuracy and less expensive.
Maintenance-free because there is no mechanical defacement like a brush for a DC motor.
