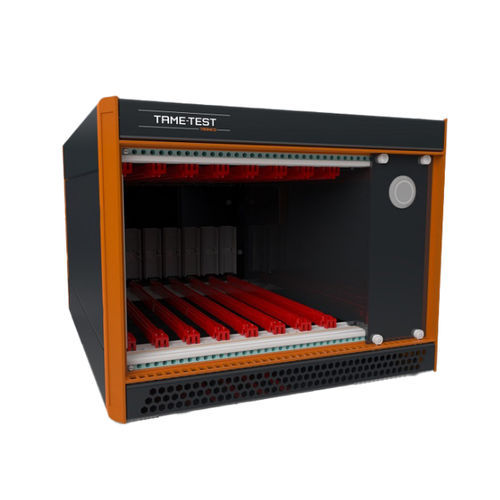

Rack-mount chassis CHAS-8SLO-4U-01

compact4U8 slots

Flexible and Versatile Switch for test equipment The Modular Switching Chassis for test benches has been developed by Tame-Test designers to meet your needs and constraints in terms of test environments. This versatile, adaptable and compact 4U-high enclosure fits perfectly into a standard 19″ test bay. Under the CHAS-8SLO-4U-01 reference number, Tame-Test’s modular chassis enables in particular: • Continuous interconnection of up to 12 measuring instruments with the multiplexing system also developed by Tame-Test (TT-MUX-2 4C-2P-2B-01). Thanks to its 8 internal bipolar common buses, this chassis facilitates and rationalizes connections, and improves signal routing for efficient, optimal connectivity. • Give access to all multiplexer card functions and channels (up to 8 multiplexer modules) to the various test instruments connected to the chassis’ rear panel. • Control modules via a LAN connection, thanks to its Ethernet interface. The TT-MUX-2 4C-2P-2B-01 multiplexer is supplied with a man-machine interface (MMI) developed by Tame-Test. A LabView driver, compatible with standard validation and automatic test environments, is also provided for test sequences. The switchgear cabinet is equipped with a protection and cooling system to ensure optimum test performance and equipment longevity. • Internal matrix board 12×4 2-pole • 8 common internal bus, 2-poles between all modules • 12 channels: 4 x BNC connectors, 8 x 2-pole banana plugs • Supports Tame-Test modules : • Multiplexers • Matrix • Custom modules • SCPI commands compliant • Ethernet 100 Mbps interface • LabView driver supplied
