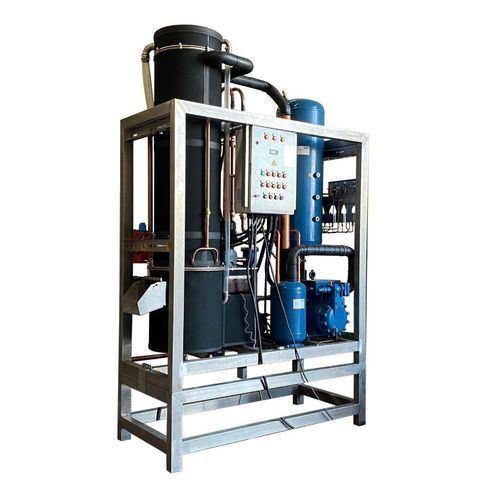

Tube ice machine

for the food industry

TECHNICAL INFORMATION
Total Ice Making Capacity: 3000 Kg /day
Ice Making Cap. (Per Hour): 125 Kg
Diameter of Per Tube: 29mm Ø
Tube Length: 35-45 mm (typical)
Ice Temperature Range: -5°C to -8°C
Refrigerant: Freon R134A
Cooling Mode: Air Cooled Condenser
Power Supply: 15HP
Compressor Power: 10,61 KW/H
Power Consumption: 380V/50-60HZ/3PH
Other Equipment of Tube Ice Machines: Ice Delivery System (Silo) and Packing Machine

Product Overview
Tube ice machines produce cylindrical ice pieces inside vertical tubes using an evaporator system. The unit operates as a closed refrigeration circuit and is ready for operation after water and electrical connections are made. Designed for continuous industrial use, the machine meets common European standards and is tested according to international certification requirements.

Advantages

• Compact footprint for high-capacity ice production
• Rapid ice formation cycle
• Low routine maintenance requirements
• Straightforward operation suitable for trained operators
• Efficient heat transfer due to tubular geometry
• Compatible with food-industry processes
• Can be integrated with conveyors and silos for automated handling

Applications

• Ice production plants and wholesale ice business
• Hospitality and catering: hotels, restaurants, bars, cafes
• Medical logistics: storage and transport of temperature-sensitive medical products
• Food processing: bakeries, fisheries and industrial food production requiring temperature control

Notes
Recommended ambient conditions: air 35°C, water 15°C. Specifications, models and colours may change without notice due to continuous product development. For cold-room storage, conveyor integration or packing solutions, consult sales for tailored configurations.

Technical specifications

• Total Ice Making Capacity: 3000 Kg /day
• Ice Making Capacity (Per Hour): 125 Kg
• Diameter per Tube: 29 mm Ø
• Tube Length: 35-45 mm (typical)
• Ice Temperature Range: -5°C to -8°C
• Refrigerant: Freon R134A
• Cooling Mode: Air Cooled Condenser
• Power Supply: 15 HP
• Compressor Power: 10.61 KW/H
• Power Consumption / Electrical: 380V / 50-60 Hz / 3PH
• Additional Equipment: Ice Delivery System (Silo) and Packing Machine
