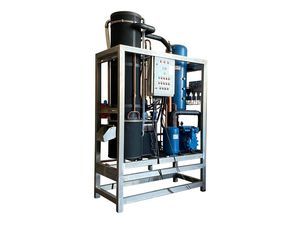

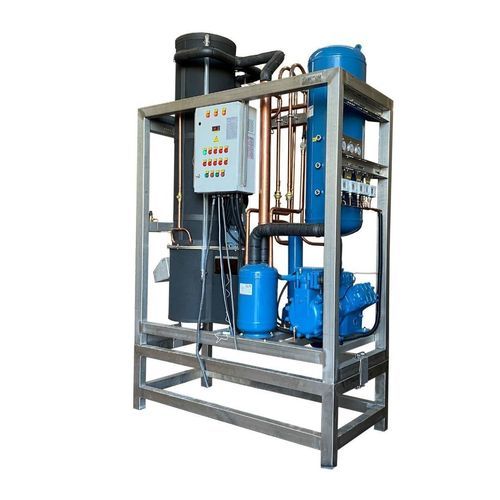

Tube ice machine TUBE5T

for food applications

Product Overview
Tube ice machines produce ice inside vertical cylindrical tubes (evaporator pipes). The Tamutom TUBE5T is built as a closed circuit and is ready for operation after electrical and water connections. Ice tubes have a diameter of 29 mm and lengths of 35–45 mm with typical ice temperatures between -5°C and -8°C. Tube ice provides efficient heat transfer and is suitable for high-volume needs in hospitality, food processing and other industrial uses. Options for ice transfer include screw conveyors and belt conveyors. Cold-room storage solutions can be supplied.

Technical Information (table)

• Total ice making capacity: 4,750 Kg/day
• Ice making capacity (per hour): 198 Kg
• Diameter per tube: 29 mm Ø
• Tube length: 35–45 mm
• Ice temperature range: -5°C to -8°C
• Refrigerant: Freon R134A
• Cooling mode: Air cooled condenser
• Power supply: 25 HP
• Compressor power: 17.26 KW/H
• Electrical: 380V / 50-60Hz / 3PH
• Other equipment: Ice delivery system (silo) and packing machine

Recommended Operating Conditions & Notes

• Recommended ambient conditions: 35°C air, 15°C water.
• Specifications, features and colors may change without notice due to continuous product development.

Advantages

• Easy installation and commissioning
• High production rate for short cycles
• Low maintenance costs
• Simple operation suitable for trained staff
• Suitable for food-industry applications
• Designed for continuous industrial use

Applications

• Ice business: Large-capacity machines for daily ice production and wholesale.
• Hospitality and leisure: Hotels, restaurants, bars, cafes and event venues.
• Medical sector: Storage and transport of medical products including medicines and vaccines.
• Bakery and confectionery: Process cooling to maintain dough and product quality regardless of season.

Technical specifications

• Total Ice Making Capacity: 4,750 Kg/day
• Ice Making Capacity (Per Hour): 198 Kg
• Diameter per Tube: 29 mm Ø
• Tube Length: 35–45 mm
• Ice Temperature Range: -5°C to -8°C
• Refrigerant: Freon R134A
• Cooling Mode: Air Cooled Condenser
• Power Supply: 25 HP
• Compressor Power: 17.26 KW/H
• Electrical: 380V / 50-60Hz / 3PH
• Other Equipment: Ice Delivery System (Silo) and Packing Machine
• Recommended Ambient Temperature: 35°C air, 15°C water
