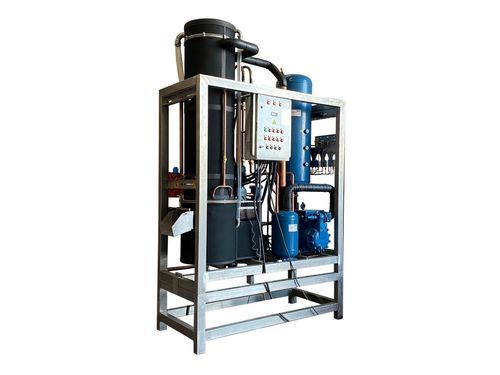

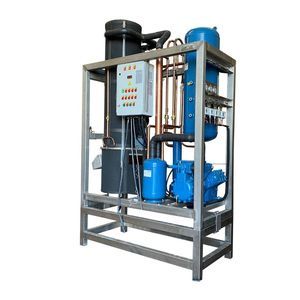

Tube ice machine TUBE3T

for food applications

Product overview
The Tamutom TUBE3T tube ice machine is a fully automatic industrial unit engineered to produce cylindrical tube ice for food-industry and commercial use. Ice forms inside vertical cylindrical molds and is collected via a closed circuit delivery system. The machine is supplied ready for operation following electrical and water connections and is built to operate in varied ambient conditions in accordance with European standards.

Technical information
Total ice making capacity: 3000 Kg/day
Ice making capacity (per hour): 125 Kg
Diameter per tube: 29 mm Ø
Tube length: 35–45 mm
Ice temperature: -5°C to -8°C
Refrigerant: Freon R134A (R134a)
Cooling mode: Air-cooled condenser
Power supply: 380V/50-60Hz/3Ph
Motor / power: 15 HP
Compressor power: 10.61 kW
Other equipment: Ice delivery system (silo) and packing machine
Recommended ambient temperature: 35°C air / 15°C water
Specifications, features and dimensions may change due to ongoing product development.

Advantages

• Automatic continuous production with simple electrical and water connections
• High hourly output suitable for large daily demand
• Low routine maintenance requirements
• Simple operation and integration with conveyors (screw or belt)
• Designed to operate in different ambient conditions
• Options for integrated silo storage and automatic packing
• Appropriate for food-industry processes and commercial distribution

Applications

• Commercial ice production and wholesale ice suppliers
• Hospitality and food service: hotels, restaurants, bars, cafes and catering
• Medical and pharmaceutical logistics: storage and transport of temperature-sensitive products
• Food processing and bakeries: dough temperature control and industrial cooling

Technical specifications

• Total ice making capacity: 3000 Kg/day
• Ice making capacity (per hour): 125 Kg
• Tube diameter: 29 mm
• Tube length: 35–45 mm
• Ice temperature range: -5°C to -8°C
• Refrigerant: Freon R134A (R134a)
• Cooling mode: Air-cooled condenser
• Power supply / motor: 15 HP
• Compressor power: 10.61 kW
• Electrical supply: 380V/50-60Hz/3Ph
• Other equipment: Ice delivery system (silo) and packing machine
• Design: closed-circuit; ready after electrical and water connections
• Recommended ambient temperature: 35°C air / 15°C water
