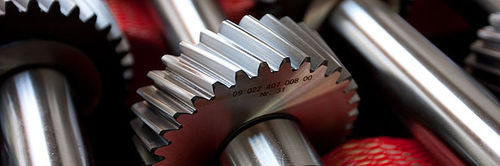

Spur gear helical-toothedshafted
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Teeth
- helical-toothed
- Configuration
- shafted
Description
a) Cut-teeth
- Module: 0.3 - 10
- Diameter: ca. 4 - 630 mm
- Helix angle: beliebig
b) Flank-ground gears up to quality 4 (nach DIN 3962/67):
- Module: 0.5 - 15
- Diameter: ca. 10 - 800 mm
- Helix angle: 0° - 45°
c) Shaved up to quality 5 (nach DIN 3962/67):
- Module: 1.5 - 4
- Diameter: ca. 10 - 300 mm
