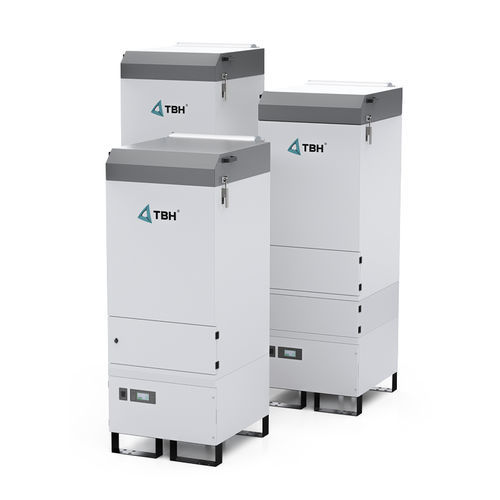

Cartridge filtration unit FP 213

particulateactivated carbonair

Description
The FP 213 is an industrial air filtration unit with a 1.8 kW brushless motor designed for dust and particle filtration in production and processing environments. It is offered as a basic model with an antistatic filter cartridge (dust class M), as a variant with an extended filter area using an H14 particle filter, and as a variant with an activated carbon filter for gas and odor adsorption.

Configurations / variants

• Basic model: antistatic filter cartridge (dust class M)
• Variant with particle filter H14 (increased filtration area)
• Variant with activated carbon filter (adsorption of gases/odours)

Technical data
Air volume flow (nominal): 600 m³/h
Effective air volume flow: 100 – 500 m³/h
Maximum static pressure: 15000 Pa
Voltage: 230 V (1P+N+PE) / 380–400 V (3P+PE)
Frequency: 50/60 Hz
Motor power: 1.8 kW
Sound level: approx. 70 dB(A)
Drive type: Brushless motor
Serial interface: Harting (surface-mounted housing with connector insert HAN6B, 24-pin)

Features / technical specifications

• Nominal air volume: 600 m³/h
• Adjustable effective flow: 100–500 m³/h
• Max. static pressure: 15000 Pa
• Voltage options: 230 V (1P+N+PE) or 380–400 V (3P+PE)
• Frequency: 50/60 Hz
• Motor: 1.8 kW brushless
• Approx. sound level: 70 dB(A)
• Serial interface: Harting HAN6B, 24-pin
• Filter options: antistatic cartridge (class M), H14 particle filter, activated carbon filter
