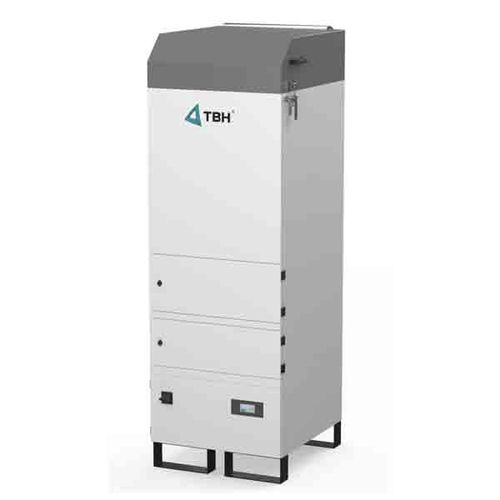

Cartridge dust collector FP 211

pulse-jet backflowfor the pharmaceutical industryfor the food industry

Product overview
The FP 211 is an industrial dust extraction system with a 3.0 kW brushless motor designed for continuous extraction of large volumes of dry dust. It features compressed-air pulse-jet self-cleaning cartridge filters, a removable dust collection container and configurable filter options including H14 particle filters and activated carbon.

Variants

• Basic: antistatic filter cartridge (dust class M)
• H14 particle filter: extended filter area for fine dust retention
• Activated carbon filter: adsorption of odorous/organic substances

Technical data

• Air volume flow: 2000 m³/h
• Effective air volume flow: 300–1500 m³/h
• Max. static pressure: 5500 Pa
• Voltage: 380–480 V (3P + PE)
• Frequency: 50/60 Hz
• Engine power: 3 kW
• Sound level: approx. 70 dB(A)
• Type of drive: Brushless motor
• Serial interface: Harting (surface-mounted housing with connector insert HAN6B, 24-pin)

Applications & benefits
The FP 211 is suited to industrial processes that generate large quantities of dry dust, e.g. plastics machining (drilling, grinding, polishing), powder mixing and transfer in food and pharmaceutical production. Compressed-air cleaning of the cartridge filters reduces clogging and extends filter life. The removable dust container enables safe and easy disposal.

Installation & maintenance
Depending on application, the unit can be equipped with different cartridge types and motor concepts for optimal adaptation. The Harting serial interface allows system integration and continuous monitoring. Filter replacement is designed for minimal contamination and fast maintenance.
