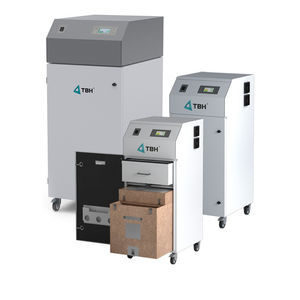

Mobile fume extractor TFS 220lasersolderingactivated carbon filter
Add to favorites
Compare this product
Characteristics
- Mobility
- mobile
- Applications
- laser, soldering
- Filter type
- activated carbon filter, with HEPA filter
- Other characteristics
- with extraction arm, compact
- Airflow
Max.: 250 m³/h
(8,829 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Power
1.1 kW
(1.5 hp)
Description
Overview
The TFS 220 – Compact power for laser and soldering workstations. The TFS 220 is a compact extraction system for laser marking, laser cutting, and laser plotters. It features a 1.1 kW motor that generates high negative pressure, making it ideal for long suction lines and narrow pipe cross-sections. Compared to the TFS 500/1000, the TFS 220 has a smaller filter area and more compact external dimensions. W3-certified (ILK Dresden) from Q3/2025. Complies with DIN EN ISO 21904-1/-2 and TRGS 528. Available in STANDARD and PLUS; optionally available with extraction arm, spark arrester or gravity separator.
Product variants
Key features / Options
Technical data (table)
Weight: 95 kg
Dimensions: 1050 × 480 × 540 cm
Air volume flow: max. 250 m³/h
Effective air volume flow: (not specified)
Max. static pressure: 20000 Pa
Voltage: 100-240 V
Frequency: 50/60 Hz
Engine power: 1,1 kW
Sound level: (not specified)
Serial interface: 25-pin Sub-D
caractéristiques / spécifications techniques
The TFS 220 – Compact power for laser and soldering workstations. The TFS 220 is a compact extraction system for laser marking, laser cutting, and laser plotters. It features a 1.1 kW motor that generates high negative pressure, making it ideal for long suction lines and narrow pipe cross-sections. Compared to the TFS 500/1000, the TFS 220 has a smaller filter area and more compact external dimensions. W3-certified (ILK Dresden) from Q3/2025. Complies with DIN EN ISO 21904-1/-2 and TRGS 528. Available in STANDARD and PLUS; optionally available with extraction arm, spark arrester or gravity separator.
Product variants
- TFS 220 Standard — Filter configuration: SafeLine filter (F9), particle filter H14
- TFS 220 Plus — Filter configuration: SafeLine filter (F9), particle filter H14, activated carbon
Key features / Options
- Motor: 1.1 kW
- High negative pressure for long suction lines and narrow pipe cross-sections
- Compact external dimensions (smaller filter area vs. TFS 500/1000)
- W3 certification (ILK Dresden) from Q3/2025
- Standards compliance: DIN EN ISO 21904-1/-2 and TRGS 528
- Optional accessories: extraction arm, spark arrester, gravity separator
Technical data (table)
Weight: 95 kg
Dimensions: 1050 × 480 × 540 cm
Air volume flow: max. 250 m³/h
Effective air volume flow: (not specified)
Max. static pressure: 20000 Pa
Voltage: 100-240 V
Frequency: 50/60 Hz
Engine power: 1,1 kW
Sound level: (not specified)
Serial interface: 25-pin Sub-D
caractéristiques / spécifications techniques
- Weight: 95 kg
- Dimensions: 1050 × 480 × 540 cm
- Air volume flow: max. 250 m³/h
- Max. static pressure: 20000 Pa
- Voltage: 100-240 V
- Frequency: 50/60 Hz
- Engine power: 1,1 kW
- Serial interface: 25-pin Sub-D
- Filter options: SafeLine filter (F9), particle filter H14; PLUS variant includes activated carbon
- Optional accessories: extraction arm, spark arrester, gravity separator
- Certifications / Standards: W3 (ILK Dresden) from Q3/2025; DIN EN ISO 21904-1/-2; TRGS 528
