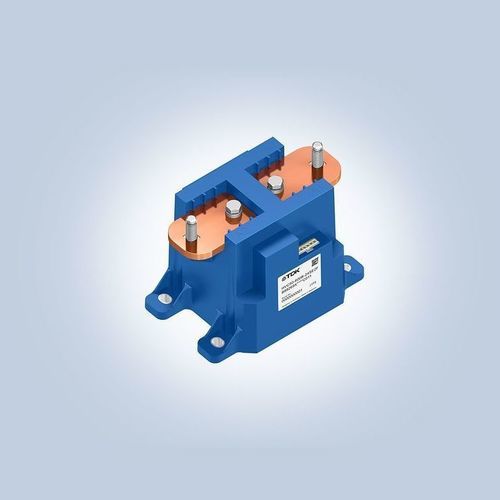

Power contactor HVC50 serieshigh-powerelectromagneticelectromechanical
Add to favorites
Compare this product
Characteristics
- Function
- power, high-power
- Technology
- electromagnetic, electromechanical
- Electrical characteristics
- DC, high-voltage, high-current
- Applications
- industrial, for electric vehicles, battery, for high-voltage applications
- Other characteristics
- auxiliary, IEC, bidirectional, for high-voltage control boxes
- Primary current
Max.: 1,000 A
Min.: 0 A
- Load voltage
Max.: 1,500 V
Min.: 0 V
Description
Overview
TDK Corporation announces the HVC50, a high-voltage DC contactor designed for connecting or disconnecting lithium-ion battery systems up to 1500 V for traction, energy storage systems (ESS) and megawatt charging systems (MCS). The HVC50 provides fast DC disconnection, bidirectional main terminals and features designed for safe arc quenching and reliable integration in demanding industrial and vehicular environments.
Main applications
Main features and benefits
Key Data
Type | Ordering Code | Coil voltage [V] | Continuous current [A] | Temporary overcurrent (1 min) [A]
HVC50-400B-12MCE2 | On request | 12 | 400 | 650
HVC50-400B-24MCE2 | On request | 24 | 400 | 650
HVC50-600B-12MCE2 | B88269X7630C011 | 12 | 600 | 1000
HVC50-600B-24MCE2 | B88269X6140C011 | 24 | 600 | 1000
HVC50-750B-12MCE2 | B88269X8020C011 | 12 | 750 | 1000
HVC50-750B-24MCE2 | B88269X7910C011 | 24 | 750 | 1000
Technical specifications
TDK Corporation announces the HVC50, a high-voltage DC contactor designed for connecting or disconnecting lithium-ion battery systems up to 1500 V for traction, energy storage systems (ESS) and megawatt charging systems (MCS). The HVC50 provides fast DC disconnection, bidirectional main terminals and features designed for safe arc quenching and reliable integration in demanding industrial and vehicular environments.
Main applications
- Traction battery systems
- Energy storage systems (ESS)
- Megawatt charging systems (MCS)
Main features and benefits
- Maximum cut-off: 1000 A (DC) at 1500 V (DC)
- Continuous operation: up to 750 A (DC) at 1500 V (DC)
- Bi-directional main terminals (no polarity required)
- Auxiliary mirror contact for switching feedback (IEC 60947-4-1)
- Dual-coil design for 12 V or 24 V operation
- Coil termination protected with TVS diode
- RoHS compatible
Key Data
Type | Ordering Code | Coil voltage [V] | Continuous current [A] | Temporary overcurrent (1 min) [A]
HVC50-400B-12MCE2 | On request | 12 | 400 | 650
HVC50-400B-24MCE2 | On request | 24 | 400 | 650
HVC50-600B-12MCE2 | B88269X7630C011 | 12 | 600 | 1000
HVC50-600B-24MCE2 | B88269X6140C011 | 24 | 600 | 1000
HVC50-750B-12MCE2 | B88269X8020C011 | 12 | 750 | 1000
HVC50-750B-24MCE2 | B88269X7910C011 | 24 | 750 | 1000
Technical specifications
- Rated DC voltage capability: up to 1500 V
- Single-event disconnect: up to 1500 V and up to 1000 A (DC) in less than 30 ms
- Continuous current rating: up to 750 A (DC)
- Bi-directional main terminals (no polarity required)
- Ceramic arc chamber, gas-filled design for rapid and safe arc quenching
- Integrated mirror contact compliant with IEC 60947-4-1 for switching feedback
- Dual-coil operation for 12 V or 24 V operating voltages
- Making power: 50 W; steady-state coil power: 6 W (one coil may be switched off after ~200 ms to reduce steady-state power)
- Coil termination protected with a TVS diode
- Weight: 1.7 kg
- Dimensions: 97.8 x 140 x 94.2 mm
- Certifications: CE, UKCA, UL
- RoHS compatible
