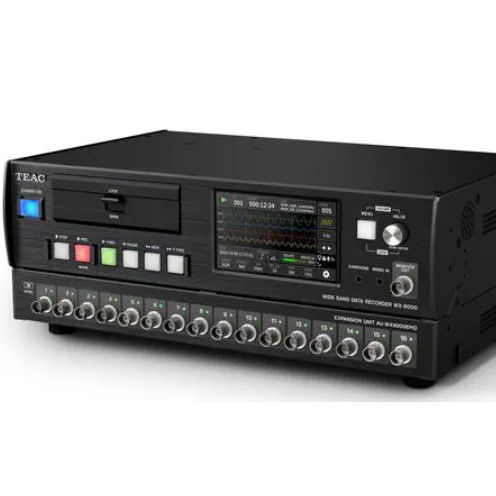

Multi-channel data-logger WX-9000 Series

frequencyWiFiwith touch screen

The “WX-9000 Series” is intended for use in high-bandwidth, multi-channel measurement in the fields of key industries such as aerospace, railroad, electric power and defense sector, where reliability and certainty of data recording are strongly required. Compared to the conventional “WX-7000 series”, the “WX-9000 series” features significantly improved basic specifications including functions and performance, as well as lower running costs and improved usability. -High sampling and recording rate: In the configuration up to 64 channels, 256kHz sampling/100kHz bandwidth supported. -Wide dynamic range of 135dB (FFT-based), which exceeds that of conventional products. -Channel-to-channel isolation for every 2 channels allows less susceptible to noise and interference from other channels. -In addition to the conventional jog dial, a touch panel LCD for quick and intuitive operation. -Recording channels can be expanded with every 16 channels and one unit can provide maximum 128 channels by configuration of 8 expansion units. -Supports distributed placement, allowing the main unit and expansion unit to be placed up to 50 m apart. -Enables setting, control, and monitoring of the main unit via wireless LAN. -GPS input as standard.
